Partner Import Bridge Example¶

This is the bridge example showing how to generate OpenAPI docs from @validate_http decorators without using @openapi on every handler. It uses scan_validation_metadata(app), register_openapi_metadata(), and the OpenAPIOperationMetadata dataclass.

Source: examples/partner_import_bridge/function_app.py

What this example includes¶

Method	Route	Purpose
`POST`	`/api/partners/import`	Import partner records
`GET`	`/api/partners/import/history`	Get import history
`DELETE`	`/api/partners/purge`	Purge all partner data
`GET`	`/api/openapi.json`	OpenAPI JSON
`GET`	`/api/docs`	Swagger UI

Features demonstrated¶

scan_validation_metadata(app) — auto-register OpenAPI metadata from @validate_http
register_openapi_metadata() — programmatic registration for endpoints
request_model parameter on register_openapi_metadata() — proper Pydantic schema conversion
OpenAPIOperationMetadata dataclass — structured alternative to keyword arguments
request_body_required flag
security and security_scheme via programmatic registration

When to use the bridge pattern¶

Approach	Best for
`@openapi` decorator	Full control over OpenAPI metadata per endpoint
`@openapi` + `@validate_http` stacked	Synchronized docs and validation with shared models
Bridge (`register_openapi_metadata`)	Auto-generate docs from validation decorators, add metadata programmatically

The bridge pattern is useful when:

You already have @validate_http on all handlers and want docs without adding @openapi to each one
You register routes dynamically and need programmatic metadata control
You want to centralize OpenAPI metadata registration in one place

Data models¶

class PartnerRecord(BaseModel):
    partner_id: str = Field(..., description="External partner identifier.")
    name: str = Field(..., description="Partner display name.")
    data: dict[str, Any] = Field(default_factory=dict, description="Arbitrary partner data.")


class ImportBatchRequest(BaseModel):
    source: str = Field(..., description="Import source system identifier.")
    records: list[PartnerRecord] = Field(..., min_length=1, description="Records to import.")
    dry_run: bool = Field(default=False, description="If true, validate without persisting.")


class ImportBatchResponse(BaseModel):
    batch_id: str = Field(..., description="Unique batch identifier.")
    imported: int = Field(..., description="Number of records imported.")
    skipped: int = Field(default=0, description="Number of records skipped (duplicates).")
    status: str = Field(default="completed", description="Batch status.")
    created_at: str = Field(..., description="ISO-8601 timestamp.")

How the docs are configured¶

Step 1: Scan for validation metadata¶

from azure_functions_openapi import scan_validation_metadata

scan_validation_metadata(app)

Step 2: Register metadata programmatically¶

For endpoints using @validate_http, use request_model to get proper schema conversion:

from azure_functions_openapi import register_openapi_metadata

register_openapi_metadata(
    path="/api/partners/import",
    method="POST",
    summary="Import partner records",
    description="Batch import partner records from an external source.",
    tags=["partners"],
    request_model=ImportBatchRequest,
    response_model=ImportBatchResponse,
    response={200: {"description": "Import completed"}},
)

Step 3: Use OpenAPIOperationMetadata for structured registration¶

from azure_functions_openapi import OpenAPIOperationMetadata

_bulk_delete_meta = OpenAPIOperationMetadata(
    path="/api/partners/purge",
    method="DELETE",
    summary="Purge all partner data",
    description="Remove all imported partner records. Use with caution.",
    tags=["partners"],
    request_body_required=False,
    response={
        200: {"description": "All records purged"},
        401: {"description": "Unauthorized"},
    },
    security=[{"ApiKeyAuth": []}],
    security_scheme={
        "ApiKeyAuth": {
            "type": "apiKey",
            "in": "header",
            "name": "X-API-Key",
        }
    },
)
register_openapi_metadata(**vars(_bulk_delete_meta))

request_model vs request_body

Use request_model when you have a Pydantic model. It converts $defs/$ref patterns into proper #/components/schemas/... references. Using raw model_json_schema() output via request_body can produce invalid OpenAPI 3.0. The two parameters are mutually exclusive.

Run locally¶

The examples/ directories contain source modules, not standalone Function App projects. To run locally, copy the example into a project directory with the required host.json:

mkdir -p my-bridge-app
cp examples/partner_import_bridge/function_app.py my-bridge-app/
cat > my-bridge-app/host.json << 'EOF'
{
  "version": "2.0",
  "extensionBundle": {
    "id": "Microsoft.Azure.Functions.ExtensionBundle",
    "version": "[4.*, 5.0.0)"
  }
}
EOF

cd my-bridge-app
python -m venv .venv
source .venv/bin/activate
pip install azure-functions azure-functions-openapi azure-functions-validation pydantic
func start

Test with `curl`¶

1) Import partner records¶

curl -X POST "http://localhost:7071/api/partners/import" \
  -H "Content-Type: application/json" \
  -d '{"source":"crm","records":[{"partner_id":"P001","name":"Acme Corp","data":{"tier":"gold"}}]}'

Expected output:

{"batch_id":"imp_abc123def456","imported":1,"skipped":0,"status":"completed","created_at":"2026-04-12T00:00:00+00:00"}

2) Dry run (validate without persisting)¶

curl -X POST "http://localhost:7071/api/partners/import" \
  -H "Content-Type: application/json" \
  -d '{"source":"crm","records":[{"partner_id":"P001","name":"Acme Corp"}],"dry_run":true}'

Expected output:

{"batch_id":"imp_abc123def456","imported":1,"skipped":0,"status":"dry_run","created_at":"2026-04-12T00:00:00+00:00"}

3) Get import history¶

curl "http://localhost:7071/api/partners/import/history"

4) Purge all records¶

curl -X DELETE "http://localhost:7071/api/partners/purge" \
  -H "X-API-Key: my-admin-key"

Expected output:

{"purged":1,"status":"completed"}

5) Purge without API key¶

curl -i -X DELETE "http://localhost:7071/api/partners/purge"

Expected status:

HTTP/1.1 401 Unauthorized

Inspect generated spec¶

curl "http://localhost:7071/api/openapi.json"

You should see:

three operations under partners tag
ImportBatchRequest and ImportBatchResponse as component schemas (not inline $defs)
securitySchemes.ApiKeyAuth for the purge endpoint
PartnerRecord referenced within ImportBatchRequest

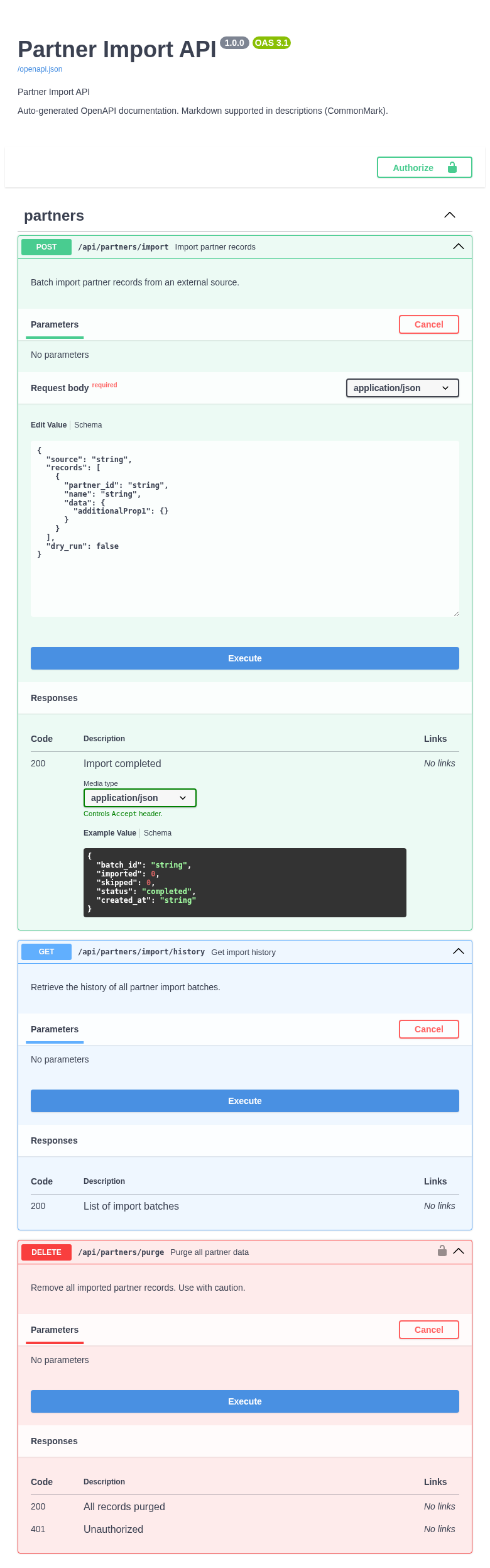

Open Swagger UI¶

Open http://localhost:7071/api/docs in your browser.

Expected behavior:

all partners operations grouped under one tag
Authorize button for API key input
nested PartnerRecord model visible in request body editor

Production takeaways¶

Use request_model instead of raw model_json_schema() for proper schema references
scan_validation_metadata(app) picks up @validate_http metadata automatically when available
Use OpenAPIOperationMetadata for centralized, structured metadata management
request_body_required=False is useful for endpoints that accept optional request bodies
