Durable Functions Orchestration Stuck Playbook¶

1. Summary¶

This playbook addresses incidents where Durable Functions orchestration instances stay in Running (or appear hung) far longer than expected, with little or no forward progress. Typical drivers include replay storms, oversized orchestration history, non-deterministic orchestrator code, failed activities without explicit retries, and workflows waiting forever for external events.

Stuck orchestrations are often misclassified as platform outages. In many cases, storage/provider health is normal and the issue is orchestration logic or execution shape. Fast triage requires separating "no progress" from "slow progress," then proving whether the bottleneck is replay, deterministic violations, dependency failure, or missing external signal.

Decision Flow¶

flowchart TD
    A[Incident: orchestration instances not completing] --> B{Instances still Running?}
    B -->|Yes| C[Check lastUpdatedTime and execution age]
    B -->|No| D[Investigate terminal failures]
    C --> E{History growth high or replay events elevated?}
    E -->|Yes| F["Replay storm / history bloat path"]
    E -->|No| G{Waiting for external event?}
    G -->|Yes| H[Validate event source delivery]
    G -->|No| I{Activity failures present?}
    I -->|Yes| J[Retry policy missing or exhausted]
    I -->|No| K{Non-determinism traces present?}
    K -->|Yes| L[Fix orchestrator determinism violations]
    K -->|No| M["Check host scale/concurrency and dependencies"]
    F --> N["Mitigate: continue-as-new/partition/history reduction"]
    H --> N
    J --> N
    L --> N
    M --> N

Severity guidance¶

Signal snapshot¶

flowchart LR
    A[Orchestrator starts] --> B[Load history from storage]
    B --> C[Replay deterministic steps]
    C --> D[Schedule activity]
    D --> E[Persist state]
    E --> F{Progressing?}
    F -->|Yes| G[Continue workflow]
    F -->|No| H["Stuck in replay/wait/failure loop"]
    H --> I[Instance remains Running]

sequenceDiagram
    participant Client as Caller
    participant Func as Function App
    participant Orchestrator as Durable Orchestrator
    participant Activity as Activity Function
    participant Store as Durable Storage
    Client->>Func: Start orchestration
    Func->>Store: Persist start event
    Orchestrator->>Store: Load/replay history
    Orchestrator->>Activity: Invoke activity
    Activity-->>Orchestrator: Failure without retry policy
    Orchestrator->>Store: Persist Running state updates
    Note over Orchestrator,Store: Instance appears alive but no business progress

2. Common Misreadings¶

3. Competing Hypotheses¶

4. What to Check First¶

1. Identify affected orchestration names, age, count in Running, and oldest lastUpdatedTime.
2. Verify whether the workflow is replaying, waiting for external events, or repeatedly failing activities.
3. Confirm if a recent deployment introduced orchestrator logic changes.
4. Determine whether immediate containment requires controlled restarts, instance termination, or selective replay reduction.

Quick portal checks¶

• In Application Insights, inspect traces for replay, deterministic violations, and waiting-event messages.

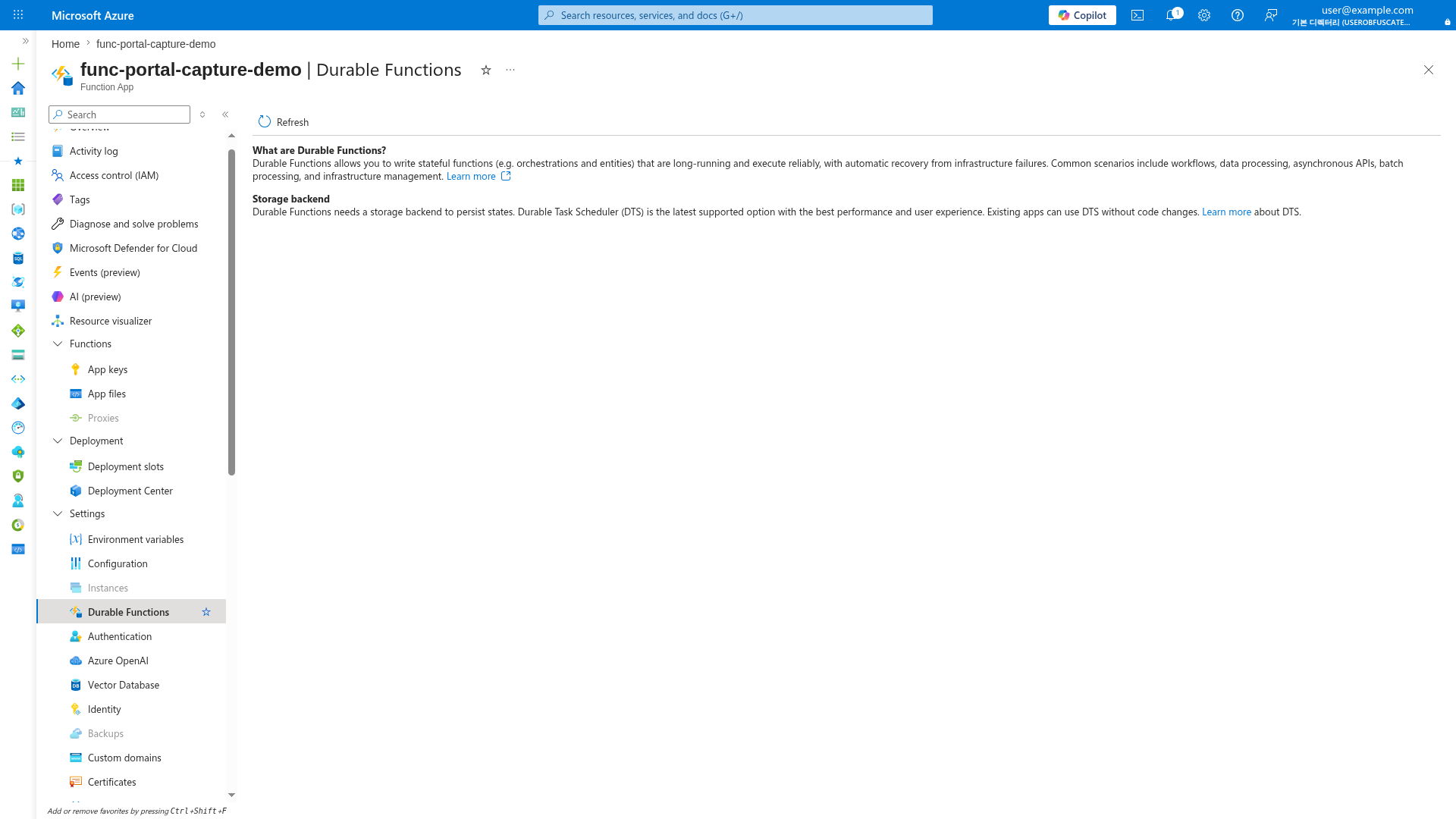

• In Durable monitoring view, list oldest Running instances and compare to expected execution duration.
• In Metrics, correlate dependency latency/failures with orchestration stalls.

Quick CLI checks¶

az functionapp show --name $APP_NAME --resource-group $RG --output table
az rest --method get --url "https://$APP_NAME.azurewebsites.net/runtime/webhooks/durabletask/instances/$INSTANCE_ID?taskHub=$TASK_HUB&connection=Storage&code=$DURABLE_API_KEY&showHistory=true&showHistoryOutput=true" --output json
az monitor log-analytics query --workspace "$WORKSPACE_ID" --analytics-query "traces | where timestamp > ago(30m) | where message has_any ('Durable', 'orchestration', 'replay', 'nondeterministic') | project timestamp, operation_Id, message" --output table
az monitor log-analytics query --workspace "$WORKSPACE_ID" --analytics-query "requests | where timestamp > ago(30m) | where name has_any ('orchestrator','activity') | summarize total=count(), failed=countif(success == false), p95=percentile(duration,95) by name" --output table

Example output¶

Name                ResourceGroup          State    RuntimeVersion    DefaultHostName
------------------  ---------------------  -------  ----------------  ----------------------------------------
func-prod-workflow  rg-functions-prod      Running  ~4                func-prod-workflow.azurewebsites.net

{
  "name": "OrderSagaOrchestrator",
  "instanceId": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
  "runtimeStatus": "Running",
  "createdTime": "2026-04-05T01:55:20.114Z",
  "lastUpdatedTime": "2026-04-05T03:40:51.909Z",
  "input": "{\"orderId\":\"ORD-102948\"}",
  "customStatus": "WaitingForPaymentConfirmed",
  "historyEventCount": 18462
}

timestamp                   operation_Id                           message
--------------------------  ------------------------------------   -------------------------------------------------------------
2026-04-05T03:39:30.204Z    xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx   DurableTask replaying orchestrator OrderSagaOrchestrator
2026-04-05T03:40:05.987Z    xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx   Waiting for external event PaymentConfirmed

name                          total   failed   p95
---------------------------   -----   ------   -----------
OrderSagaOrchestrator         2920    0        00:00:08.221
ChargePaymentActivity         540     217      00:00:04.118

5. Evidence to Collect¶

6. Validation and Disproof by Hypothesis¶

H1: Replay storm from oversized orchestration history¶

Confirming KQL¶

traces
| where timestamp > ago(12h)
| where message has_any ("replay", "Replaying", "DurableTask")
| extend instanceId = coalesce(tostring(customDimensions["prop__InstanceId"]), tostring(customDimensions["InstanceId"]))
| summarize replayEvents=count(), firstSeen=min(timestamp), lastSeen=max(timestamp) by instanceId, operation_Name
| join kind=leftouter (
    requests
    | where timestamp > ago(12h)
    | where name has "orchestrator"
    | extend instanceId = coalesce(tostring(customDimensions["prop__InstanceId"]), tostring(customDimensions["InstanceId"]))
    | summarize orchestrationRequests=count(), p95Duration=percentile(duration,95) by instanceId
) on instanceId
| order by replayEvents desc

Expected output¶

instanceId                              operation_Name              replayEvents   firstSeen                   lastSeen                    orchestrationRequests   p95Duration
------------------------------------    -------------------------   ------------   -------------------------   -------------------------   ----------------------   -----------
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx    OrderSagaOrchestrator       2350           2026-04-05T01:58:09.110Z   2026-04-05T03:41:18.402Z   2289                    00:00:08.481
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx    RenewalOrchestrator         1794           2026-04-05T02:10:10.901Z   2026-04-05T03:39:02.335Z   1702                    00:00:06.992

Disproving check¶

If replay events remain low and history size is modest while instances still stall, replay storm is not primary. Evaluate missing external events or dependency failures next.

Secondary verification query:

requests
| where timestamp > ago(6h)
| where name has "orchestrator"
| extend instanceId = tostring(customDimensions["InstanceId"])
| summarize runs=count(), avgDuration=avg(duration), p95Duration=percentile(duration,95) by instanceId, name
| order by p95Duration desc

Use this to confirm whether long orchestrator slices are systemic or isolated to a few instances.

H2: Non-deterministic orchestrator code causes replay mismatch¶

Confirming KQL¶

traces
| where timestamp > ago(24h)
| where message has_any ("Non-Deterministic", "nondeterministic", "deterministic", "replay mismatch")
| extend functionName = tostring(customDimensions["FunctionName"])
| extend instanceId = tostring(customDimensions["InstanceId"])
| project timestamp, functionName, instanceId, severityLevel, message
| order by timestamp desc

Expected output¶

timestamp                   functionName             instanceId                              severityLevel   message
--------------------------  ----------------------   ------------------------------------    -------------   -----------------------------------------------------------------------
2026-04-05T03:11:22.090Z    OrderSagaOrchestrator   xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx   3               Non-Deterministic workflow detected: Guid.NewGuid used in orchestrator
2026-04-05T03:11:22.115Z    OrderSagaOrchestrator   xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx   3               Replay mismatch at step ValidatePaymentState

Disproving check¶

If no deterministic violation traces appear and code review confirms orchestrator uses deterministic APIs (context.CurrentUtcDateTime, context.NewGuid), deprioritize this hypothesis.

Code-level anti-pattern checklist: - Direct calls to current clock APIs inside orchestrator logic. - Direct GUID generation inside orchestrator logic. - Random number generation or unordered dictionary iteration used to branch. - Network I/O in orchestrator body instead of activity functions.

H3: Activity failures without retry/compensation stall workflow¶

Confirming KQL¶

requests
| where timestamp > ago(12h)
| where name has "Activity"
| summarize total=count(), failed=countif(success == false), p95=percentile(duration,95) by name, operation_Id
| where failed > 0
| join kind=leftouter (
    traces
    | where timestamp > ago(12h)
    | where message has_any ("Retry", "TaskFailed", "Unhandled exception", "activity")
    | project operation_Id, traceMessage=message, traceTime=timestamp
) on operation_Id
| project name, operation_Id, total, failed, p95, traceTime, traceMessage
| order by failed desc

Expected output¶

name                          operation_Id                           total   failed   p95          traceTime                    traceMessage
---------------------------   ------------------------------------   -----   ------   ----------   --------------------------   -------------------------------------------------------------
ChargePaymentActivity         xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx   11      11       00:00:04.118 2026-04-05T03:18:20.002Z    TaskFailedException in ChargePaymentActivity; no retry policy
ReserveInventoryActivity      xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx   8       8        00:00:02.904 2026-04-05T03:18:31.443Z    Unhandled exception from dependency timeout

Disproving check¶

If activity calls are succeeding with normal latency yet orchestration remains Running, the stall is likely at event waiting or replay/logic layers.

Escalation signal: When failed activity count exceeds successful count for the same operation over multiple 10-minute bins, treat this as probable blocker rather than transient noise.

H4: External event is never delivered¶

Confirming KQL¶

traces
| where timestamp > ago(12h)
| where message has_any ("Waiting for external event", "RaiseEvent", "ExternalEvent")
| extend instanceId = tostring(customDimensions["InstanceId"])
| extend eventName = tostring(customDimensions["EventName"])
| summarize waitCount=countif(message has "Waiting for external event"), receivedCount=countif(message has_any ("RaiseEvent", "received external event")), first=min(timestamp), last=max(timestamp) by instanceId, eventName
| order by waitCount desc

Expected output¶

instanceId                              eventName              waitCount   receivedCount   first                        last
------------------------------------    -------------------    ---------   -------------   -------------------------    -------------------------
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx    PaymentConfirmed       420         0               2026-04-05T02:05:21.110Z    2026-04-05T03:42:30.009Z
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx    ShipmentAssigned       187         0               2026-04-05T02:40:33.220Z    2026-04-05T03:41:54.719Z

Disproving check¶

If corresponding RaiseEvent messages are present with matched instance IDs and event names before timeout, missing event delivery is unlikely.

Event contract validation checklist: - Event name matches exact casing expected by orchestrator. - Instance ID used by publisher matches orchestrator instance ID. - Event source confirms publish acknowledgment in the same window. - No filtering rule in middleware drops late or duplicate events.

H5: Dependency latency/timeouts prevent orchestrator progress¶

Confirming KQL¶

dependencies
| where timestamp > ago(12h)
| summarize depCount=count(), failed=countif(success == false), p95=percentile(duration,95), p99=percentile(duration,99) by target, type, bin(timestamp, 10m)
| order by timestamp desc

Expected output¶

target                        type       timestamp                   depCount   failed   p95          p99
---------------------------   --------   --------------------------  --------   ------   ----------   ----------
payments-api.internal         HTTP       2026-04-05T03:20:00.000Z   620        143      00:00:03.921 00:00:06.314
state-store.table.core        Azure table 2026-04-05T03:20:00.000Z  1250       96       00:00:02.104 00:00:04.002

Disproving check¶

If dependencies are healthy during stuck windows, deprioritize external bottlenecks and focus on orchestration logic, eventing, and history/replay effects.

Normal vs abnormal dependency profile:

H6: Host concurrency/scale limits starve orchestration workers¶

Confirming KQL¶

AppMetrics
| where TimeGenerated > ago(12h)
| where Name in ("FunctionExecutionCount", "FunctionExecutionUnits", "RequestsInQueue")
| summarize avgValue=avg(Value), maxValue=max(Value) by Name, bin(TimeGenerated, 10m)
| order by TimeGenerated asc

Expected output¶

Name                    TimeGenerated               avgValue   maxValue
---------------------   --------------------------  --------   --------
FunctionExecutionCount  2026-04-05T03:00:00.000Z   210        260
FunctionExecutionCount  2026-04-05T03:10:00.000Z   182        201
RequestsInQueue         2026-04-05T03:00:00.000Z   820        980
RequestsInQueue         2026-04-05T03:10:00.000Z   1150       1390

Disproving check¶

If queue age and backlog remain low with healthy execution throughput, starvation is not primary; investigate code-level deterministic/replay/event issues.

Capacity tuning hints: - Raise worker count only after confirming replay storm is not primary. - Prefer reducing per-instance contention before broad scale-out. - Validate task hub storage latency before concurrency increases.

7. Likely Root Cause Patterns¶

flowchart TD
    A[Workflow starts normally] --> B[History grows each iteration]
    B --> C[Replay cost increases]
    C --> D[Execution slices consumed by replay]
    D --> E[Business step progression slows]
    E --> F[Instance remains Running for hours]
    F --> G[Backlog and SLA breach]

8. Immediate Mitigations¶

1. Check runtime status for oldest instances and terminate or restart only those violating execution SLO.

   az rest --method get --url "https://$APP_NAME.azurewebsites.net/runtime/webhooks/durabletask/instances/$INSTANCE_ID?taskHub=$TASK_HUB&connection=Storage&code=$DURABLE_API_KEY" --output json
   az rest --method post --url "https://$APP_NAME.azurewebsites.net/runtime/webhooks/durabletask/instances/$INSTANCE_ID/terminate?reason=stuck-instance-mitigation&taskHub=$TASK_HUB&connection=Storage&code=$DURABLE_API_KEY" --output json


2. Reduce replay pressure by introducing ContinueAsNew in long-running orchestrations and redeploy.

   az functionapp deployment source config-zip --name $APP_NAME --resource-group $RG --src ./deployments/durable-continue-as-new-hotfix.zip --output table


3. Add explicit retry policy for critical activity calls in code. Durable Functions retries are defined per CallActivityWithRetryAsync in the orchestrator, not via app settings.

   # Redeploy with retry policy added to orchestrator code
   az functionapp deployment source config-zip --name $APP_NAME --resource-group $RG --src ./deployments/durable-retry-policy-hotfix.zip --output table


4. Validate host and plan settings to avoid worker starvation and under-provisioned execution.

   az functionapp show --name $APP_NAME --resource-group $RG --query "{state:state,plan:serverFarmId,kind:kind}" --output json
   az functionapp plan update --name $PLAN_NAME --resource-group $RG --number-of-workers 2 --output table


5. If external events are missing, replay from upstream message source or use the Durable HTTP API to raise the event manually.

   az rest --method post --url "https://$APP_NAME.azurewebsites.net/runtime/webhooks/durabletask/instances/$INSTANCE_ID/raiseEvent/$EVENT_NAME?taskHub=$TASK_HUB&connection=Storage&code=$DURABLE_API_KEY" --body '{"status":"compensated"}' --output json


6. Restart host only after status snapshots are captured so forensic data is preserved.

   az functionapp restart --name $APP_NAME --resource-group $RG


9. Prevention¶

1. Keep orchestrator code deterministic: use context-provided time/ID APIs, never direct DateTime.Now or Guid.NewGuid inside orchestrators.
2. Use ContinueAsNew and state compaction patterns to cap orchestration history growth.
3. Define activity retries with bounded attempts, exponential backoff, and explicit compensation on failure.
4. Wrap external event waits with deadlines and fallback branches to avoid indefinite Running state.
5. Add proactive alerts for long-running instance age, replay volume, and activity failure ratio.
