Security¶

Security in Azure Functions is layered: endpoint authorization, user authentication, workload identity, API gateway policy, secret governance, and network isolation. This page focuses on design decisions so teams can choose the right security architecture before implementation.

Main Content¶

Security model overview¶

flowchart TD
    C[Caller] --> A["Endpoint auth\nanonymous/function/admin"]
    A --> E[App Service Authentication\noptional user auth]
    E --> F[Function code]
    F --> MI[Managed Identity]
    MI --> R[Azure resources\nStorage, Key Vault, SQL, Cosmos DB]
    G[API Management\noptional gateway] --> A
    F --> N[Network controls\nVNet, private endpoints, IP rules]

Authentication architecture decision tree¶

flowchart TD
    S[Start: secure HTTP endpoint] --> Q1{Is the caller a user?}
    Q1 -->|Yes| U1[Use Easy Auth\nApp Service Authentication]
    U1 --> U2[Use provider sign-in\nand claims headers]
    Q1 -->|No| Q2{Is the caller an internal service?}
    Q2 -->|Yes| S1[Prefer managed identity\nfor service-to-service]
    S1 --> S2[Use function key only\nif identity is unavailable]
    Q2 -->|No| Q3{External API consumer?}
    Q3 -->|Yes| E1[Validate JWT in code\nor in APIM gateway]
    Q3 -->|No| X[Re-check threat model\nand ingress assumptions]

HTTP authorization levels¶

Azure Functions supports three key-based authorization levels for HTTP triggers. | Level | Access model | Typical use | |---|---|---| | anonymous | No key required | Public webhook endpoints with external auth controls | | function | Function key or host key required | Internal service APIs | | admin | Master key required | Runtime/admin operations only |

Design guidance: - Use anonymous only with compensating controls (Easy Auth, APIM JWT policy, private network). - Use function for low-friction internal integrations. - Do not expose admin operations on untrusted networks.

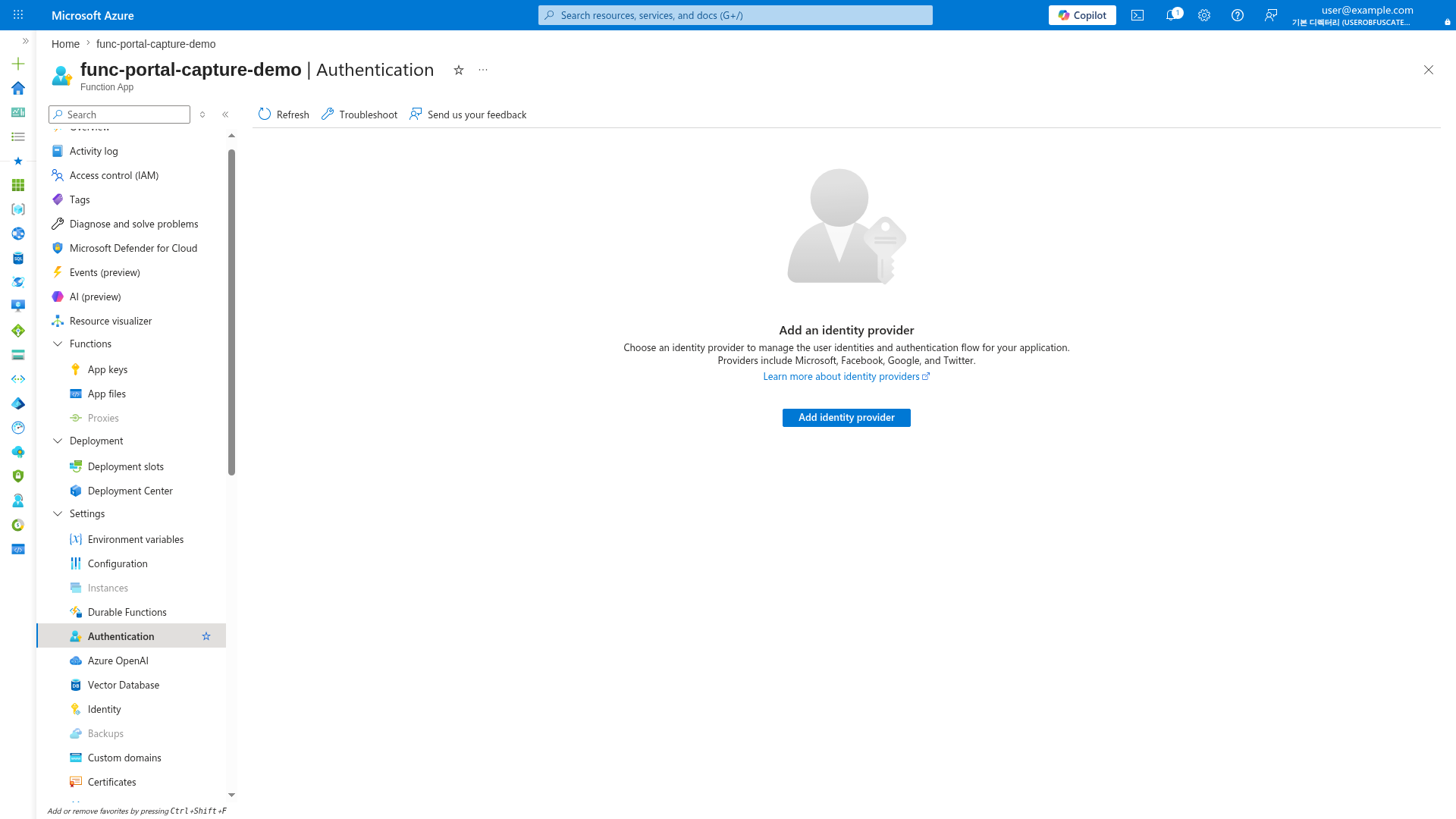

App Service Authentication (Easy Auth) deep-dive¶

Easy Auth is built-in authentication/authorization from App Service, available to Function Apps.

How it works¶

Easy Auth is platform middleware that runs before your code. It can: 1. Challenge unauthenticated requests. 2. Validate tokens from configured identity providers. 3. Forward identity claims to your function via headers.

Supported identity providers¶

Authentication vs authorization¶

• Authentication verifies caller identity.
• Authorization decides what that identity can do.

Easy Auth mainly solves authentication and token validation. You still enforce authorization (roles, scopes, resource ownership) in code or gateway policy.

Token store and session management¶

Easy Auth can maintain sign-in sessions and provider token context for web flows. For API architectures: - Prefer bearer-token patterns. - Design for token expiration and refresh policy. - Avoid browser-session assumptions for machine clients.

Built-in endpoints¶

• /.auth/login/<provider>: starts login flow
• /.auth/me: returns current identity context
• /.auth/logout: signs out current session

X-MS-CLIENT-PRINCIPAL headers¶

When authenticated, identity data is forwarded as X-MS-CLIENT-PRINCIPAL* headers.

import base64
import json
import azure.functions as func

def main(req: func.HttpRequest) -> func.HttpResponse:
    principal = req.headers.get("X-MS-CLIENT-PRINCIPAL")
    if not principal:
        return func.HttpResponse("Unauthorized", status_code=401)

    payload = json.loads(base64.b64decode(principal))
    return func.HttpResponse(json.dumps(payload), mimetype="application/json")

module.exports = async function (context, req) {
  const principal = req.headers['x-ms-client-principal'];
  if (!principal) {
    context.res = { status: 401, body: 'Unauthorized' };
    return;
  }

  const payload = JSON.parse(Buffer.from(principal, 'base64').toString('utf-8'));
  context.res = { status: 200, body: payload };
};

Easy Auth vs custom JWT validation¶

Use Easy Auth when you want platform-managed auth with mainstream providers. Use custom JWT validation (or APIM validate-jwt) when you need custom issuer rules, route-specific policies, or advanced multi-tenant logic.

JWT and OAuth 2.0 patterns¶

When to validate JWTs manually¶

Manual validation is common when: - Issuer is custom or tenant-dependent. - API-to-API contracts require explicit token policy. - Validation is centralized in APIM or custom middleware.

Minimum validation checks: 1. Signature verification with trusted signing keys. 2. Issuer (iss) allow-list check. 3. Audience (aud) check for your API. 4. Lifetime checks (exp, nbf) with controlled clock skew.

OAuth 2.0 client credentials flow¶

For service-to-service access: 1. Service acquires token from Microsoft Entra ID. 2. Service calls Function App or APIM with bearer token. 3. Gateway/platform/function validates token.

Prefer managed identity for Azure-to-Azure workloads to avoid client secret sprawl.

JWKS endpoint usage¶

JWKS endpoints provide public keys for JWT signature verification. Design for key caching, key rollover, and fail-closed behavior when signatures cannot be validated.

API Management (APIM) integration¶

Place Functions behind APIM when you need centralized API security and governance.

APIM as a security gateway¶

flowchart LR
    Client[Client or partner] --> APIM[Azure API Management]
    APIM -->|validate-jwt, rate-limit, ip-filter| Func[Azure Functions]
    Func --> Resource[Azure resources via managed identity]

When APIM is recommended¶

• OAuth/JWT validation at gateway
• Rate limiting and quotas
• IP filtering and centralized policy
• API products and consumer onboarding

Subscription key vs OAuth token¶

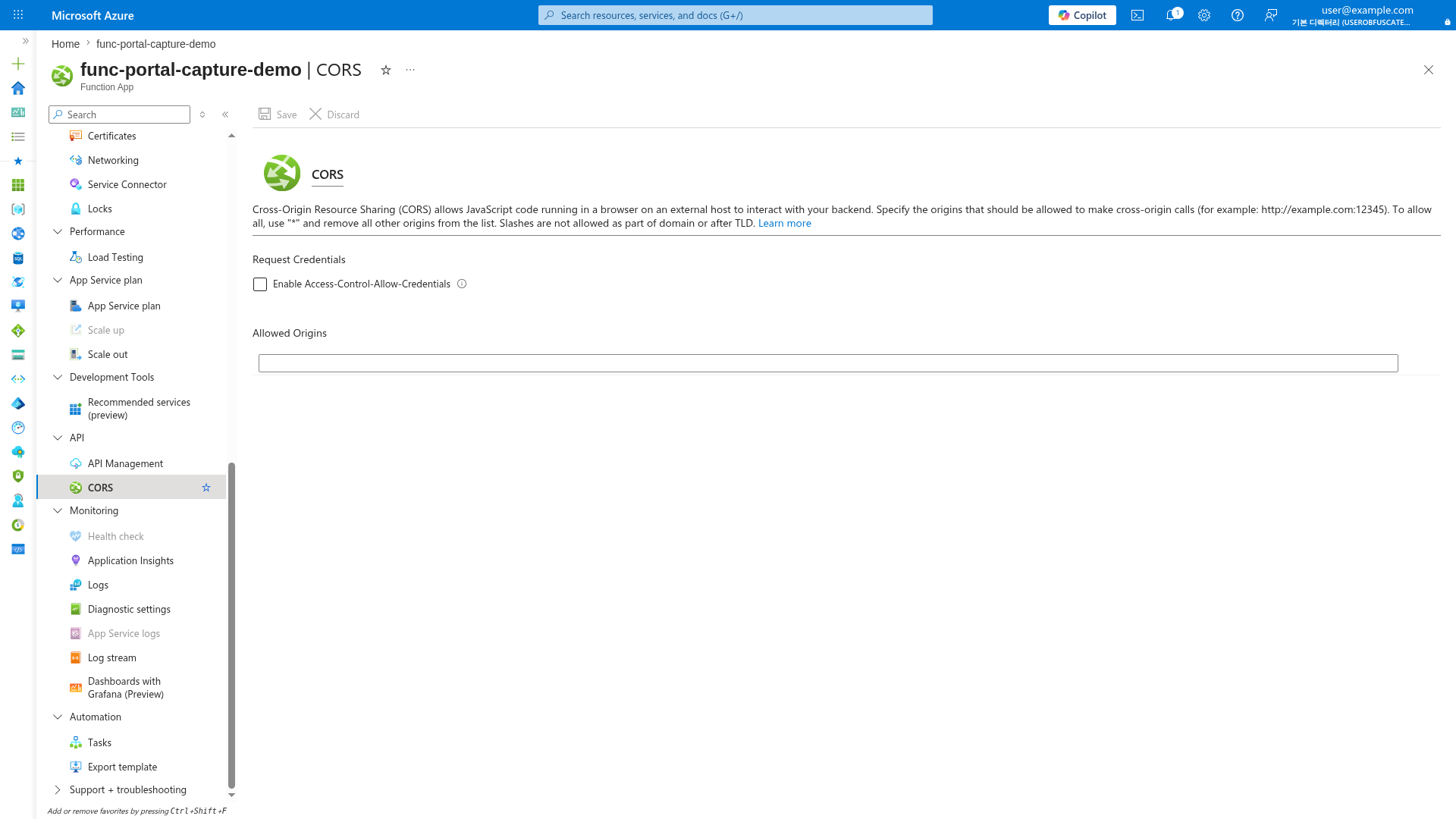

CORS configuration¶

CORS primarily affects browser clients. A backend can return HTTP 200 while browsers still block the response if origin policy fails.

az functionapp cors add \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --allowed-origins "https://app.contoso.example"

Wildcard origin risks: - * allows any origin. - Increases browser-side data exposure risk. - Avoid in production unless endpoint is intentionally public.

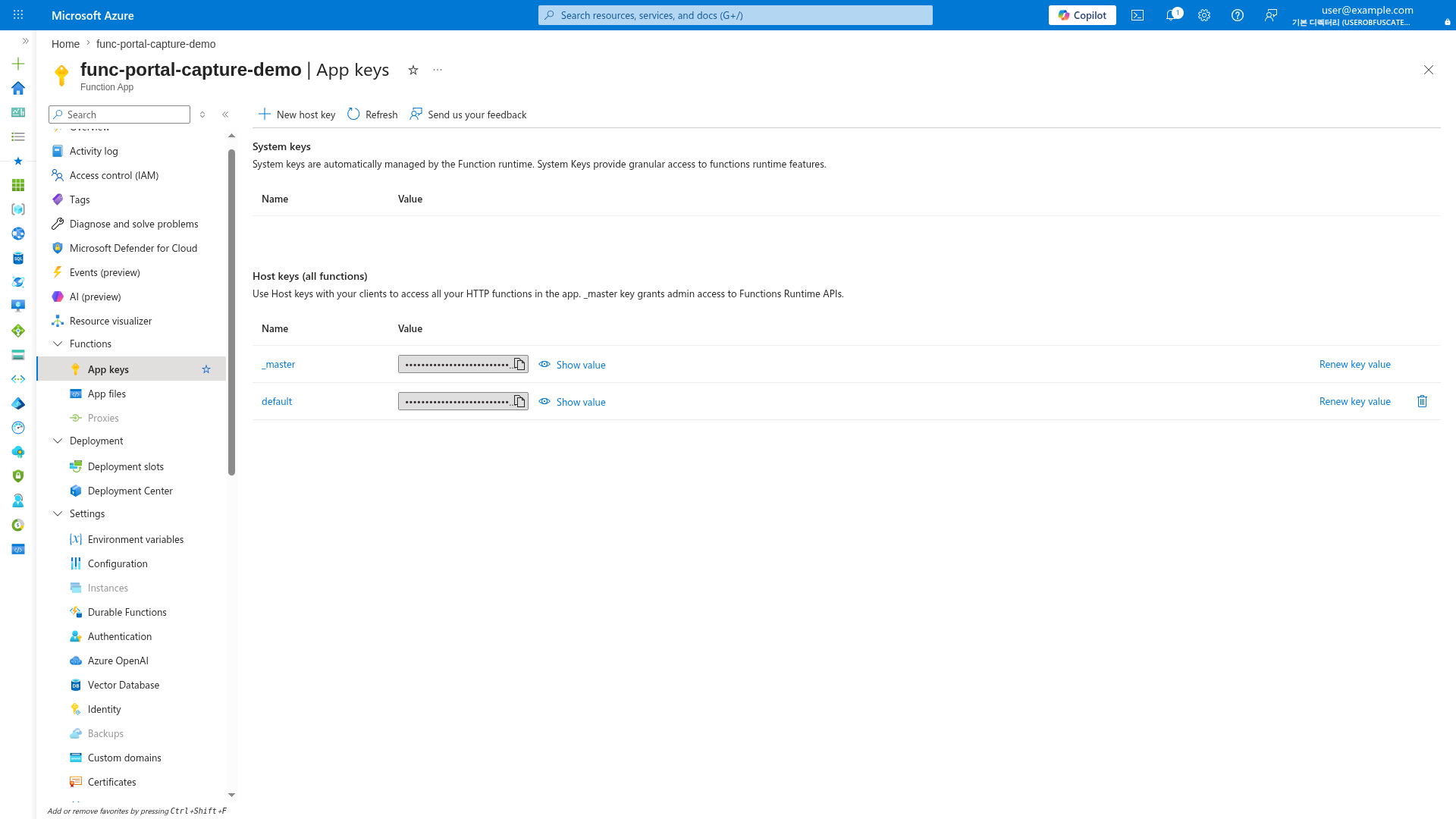

Function key management¶

Function keys are useful for shared-secret access, but they are not full authentication.

Key types and scope¶

Rotation strategy¶

• Maintain overlapping keys during cutover.
• Rotate regularly and after incidents.
• Move consumers first, then revoke old keys.
• Monitor auth failures during rotation.

az functionapp function keys list \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --function-name "HttpExample"

Storing keys in Key Vault¶

• Store shared keys in Key Vault.
• Distribute through secure channels only.
• Never commit keys or log full values.

When keys are not enough¶

Use Easy Auth, APIM OAuth, or JWT validation when you need per-user identity, claims-based authorization, conditional access, or delegated consent.

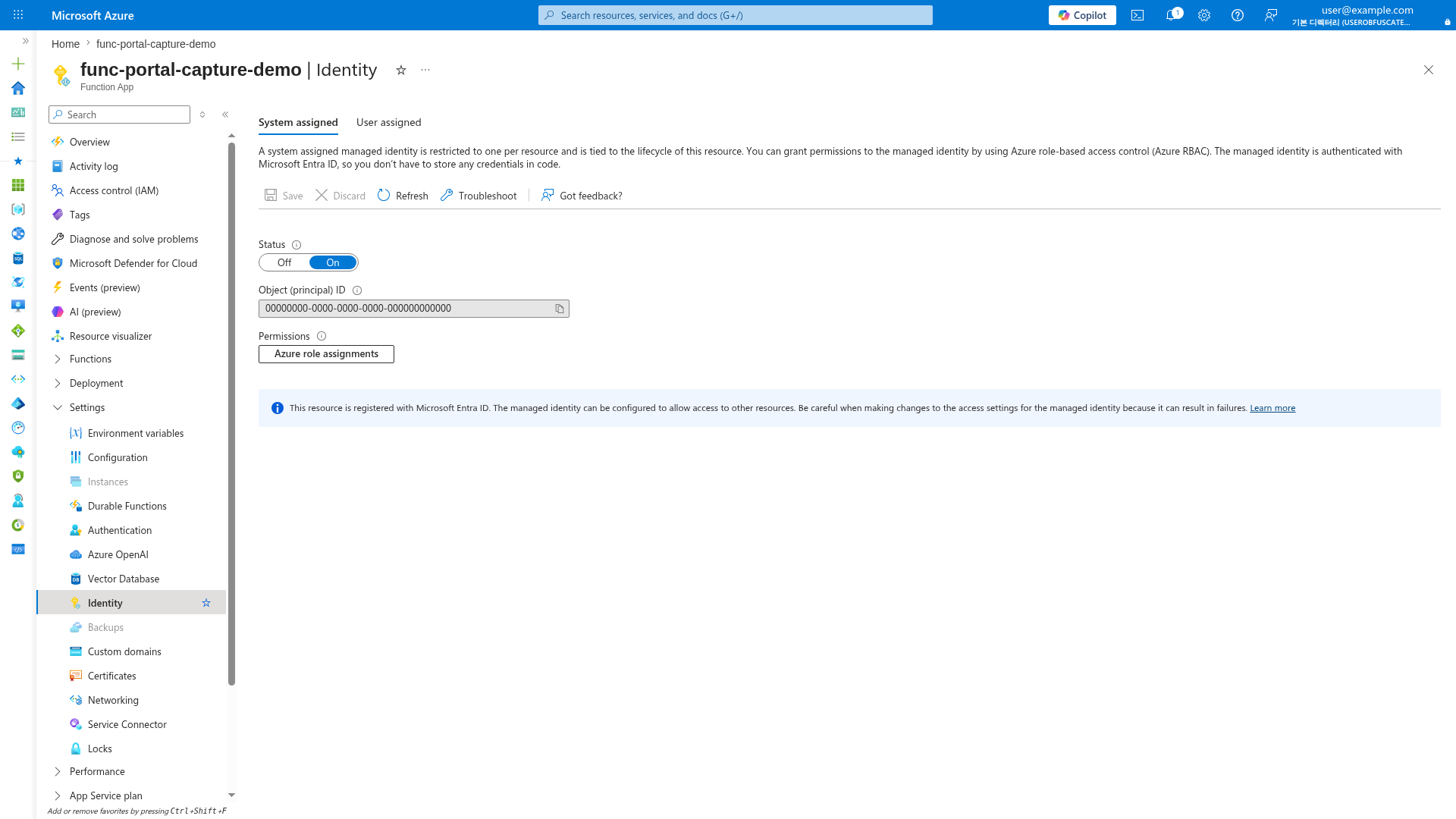

Managed identity for service-to-service access¶

Managed identity removes embedded credentials from code and app settings.

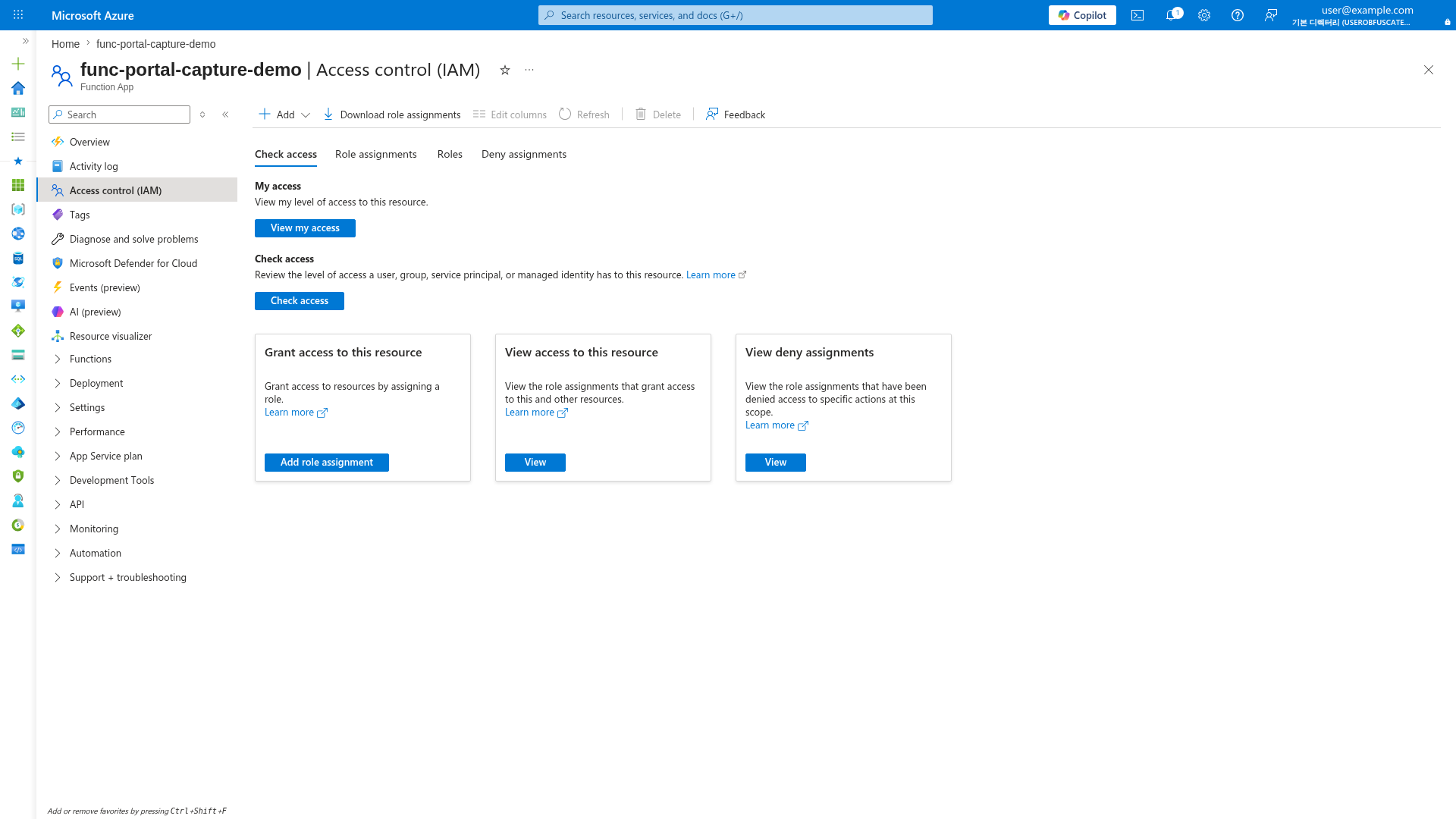

Recommended pattern: 1. Enable system-assigned or user-assigned identity. 2. Grant least-privilege RBAC on target resources. 3. Use identity-based connection settings where supported.

az functionapp identity assign \
  --name "$APP_NAME" \
  --resource-group "$RG"

az role assignment create \
  --assignee "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" \
  --role "Storage Blob Data Contributor" \
  --scope "/subscriptions/<subscription-id>/resourceGroups/$RG/providers/Microsoft.Storage/storageAccounts/$STORAGE_NAME"

Flex Consumption requires identity-based host storage configuration. Plan identity and RBAC early.

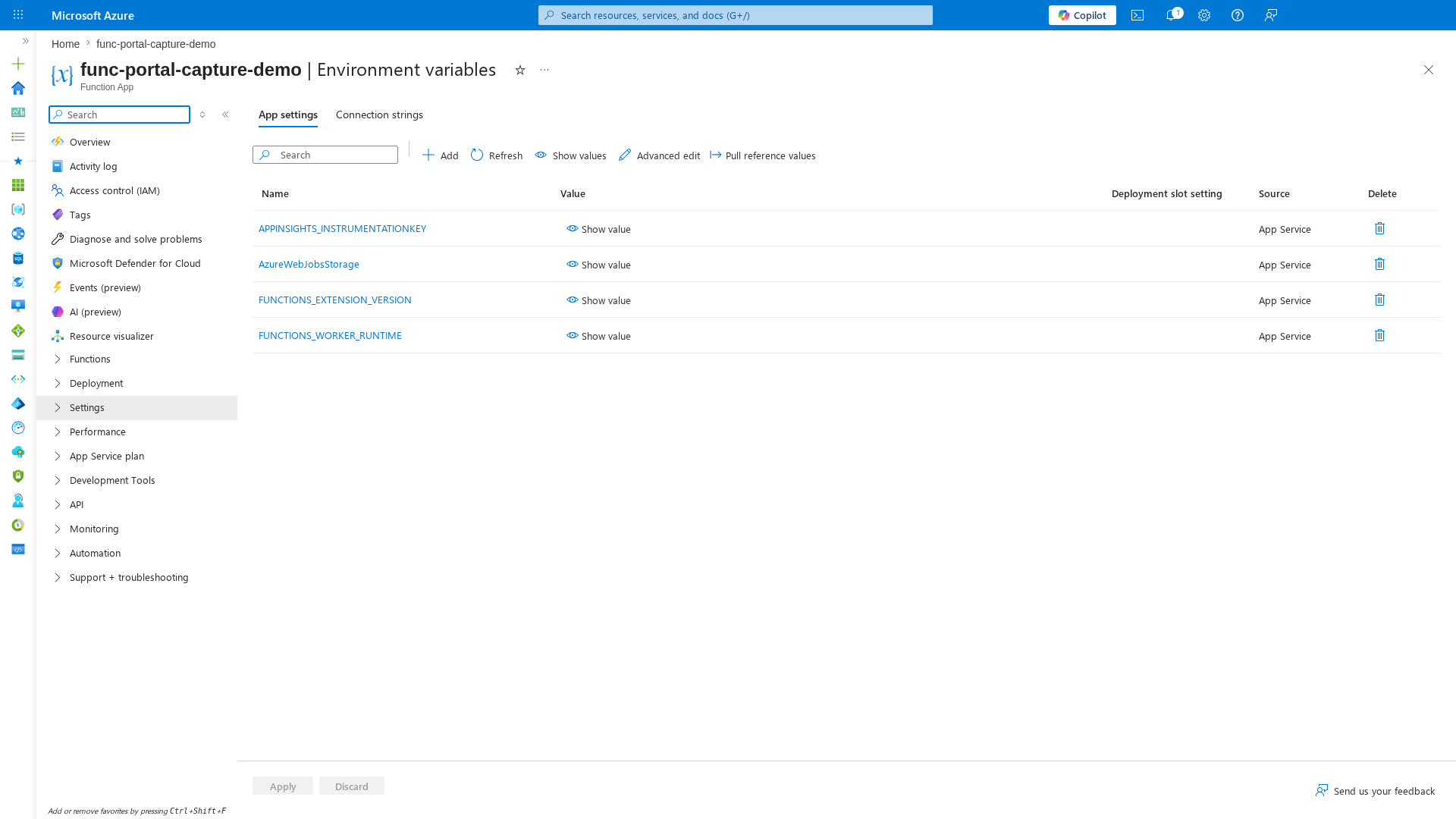

Key and secret handling¶

Preferred order: 1. Managed identity (no secret) 2. Key Vault references in app settings 3. Direct secret values only when unavoidable

Network security controls¶

Combine identity with network boundaries: - IP access restrictions - Private endpoints - VNet integration for private outbound - Optional route-all egress through firewall or NAT

Threat model for serverless¶

Common attack vectors in Functions workloads: - Injection through HTTP body/query/header input - Over-permissive triggers or exposed admin endpoints - Credential leakage in logs and telemetry - Cold-start timing side-channel considerations for sensitive paths

Defense-in-depth baseline: 1. Explicit HTTP authLevel 2. Easy Auth and/or JWT validation 3. APIM and network isolation 4. Managed identity for downstream resources 5. Logging/monitoring with token and PII redaction

Expanded security checklist¶

Identity and authentication¶

• [ ] Set explicit HTTP auth level on every endpoint.
• [ ] Use Easy Auth for user-facing APIs unless custom JWT is required.
• [ ] Validate iss, aud, signature, and expiration for JWT APIs.
• [ ] Use OAuth client credentials or managed identity for service callers.

Keys and secrets¶

• [ ] Treat function keys as shared secrets, not identity.
• [ ] Rotate function/host keys on schedule and incident.
• [ ] Store keys and secrets in Key Vault.
• [ ] Ensure logs never contain raw keys or tokens.

Network and gateway¶

• [ ] Put internet-facing APIs behind APIM when policy centralization is needed.
• [ ] Apply private endpoints or IP restrictions for sensitive workloads.
• [ ] Restrict CORS origins to known domains.
• [ ] Enforce HTTPS-only and minimum TLS version.

Authorization and least privilege¶

• [ ] Apply least-privilege RBAC to managed identities.
• [ ] Separate authentication from authorization decisions.
• [ ] Use claims/roles/scopes for resource-level access control.

Validation and operations¶

• [ ] Review threat model before production release.
• [ ] Monitor auth failures, key usage anomalies, and suspicious origin patterns.
• [ ] Re-validate controls after IaC or gateway policy changes.
