Networking¶

Azure Functions networking design has two separate concerns: - Inbound: who can call your function endpoints. - Outbound: what your functions can reach. Capabilities differ significantly by hosting plan, so networking must be chosen together with hosting.

Prerequisites¶

Prepare these items before applying networking controls: - Azure CLI authenticated to the target subscription. - Function App already deployed. - VNet and subnets planned for integration and private endpoints. - DNS ownership model decided (Azure-managed, hybrid forwarder, or custom resolver).

az account show --output table

Example output (sanitized):

Name                  CloudName    SubscriptionId      TenantId           State    IsDefault
--------------------  -----------  ------------------  -----------------  -------  -----------
Platform-Subscription AzureCloud   <subscription-id>   <tenant-id>        Enabled  True

Main Content¶

Networking capability matrix¶

Reference architecture¶

flowchart LR
    C["Client / Caller"] --> APIM["Optional Front Door / APIM"]
    APIM --> FA[Function App]
    FA -->|VNet Integration outbound| VNET[Virtual Network]
    VNET --> PE1["Private Endpoint: SQL/Cosmos/Storage"]
    VNET --> FW["Firewall/NAT"]
    FW --> EXT[Approved external services]
    CORP[On-premises network] <--> VPN["VPN/ExpressRoute"]
    VPN <--> VNET

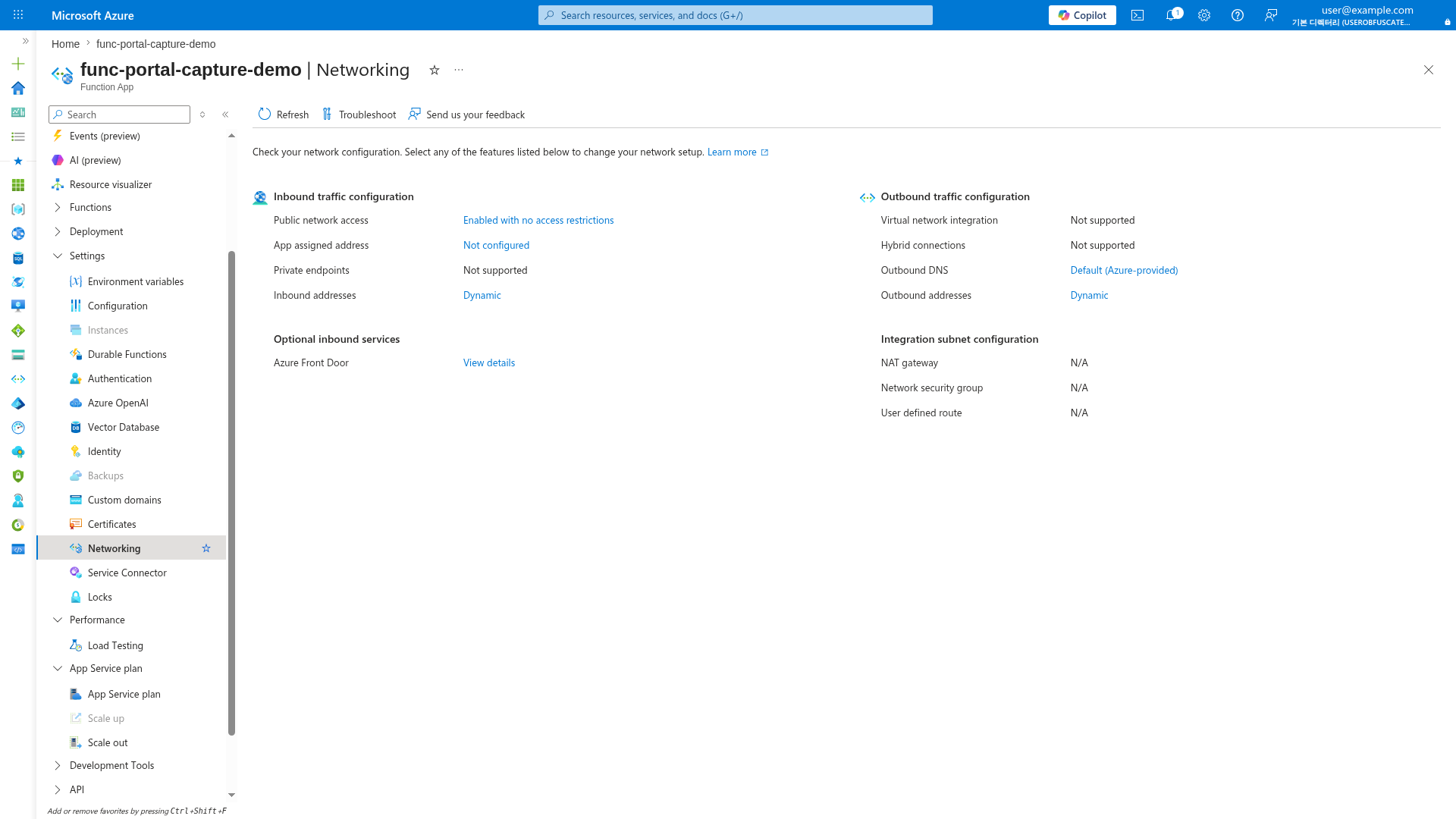

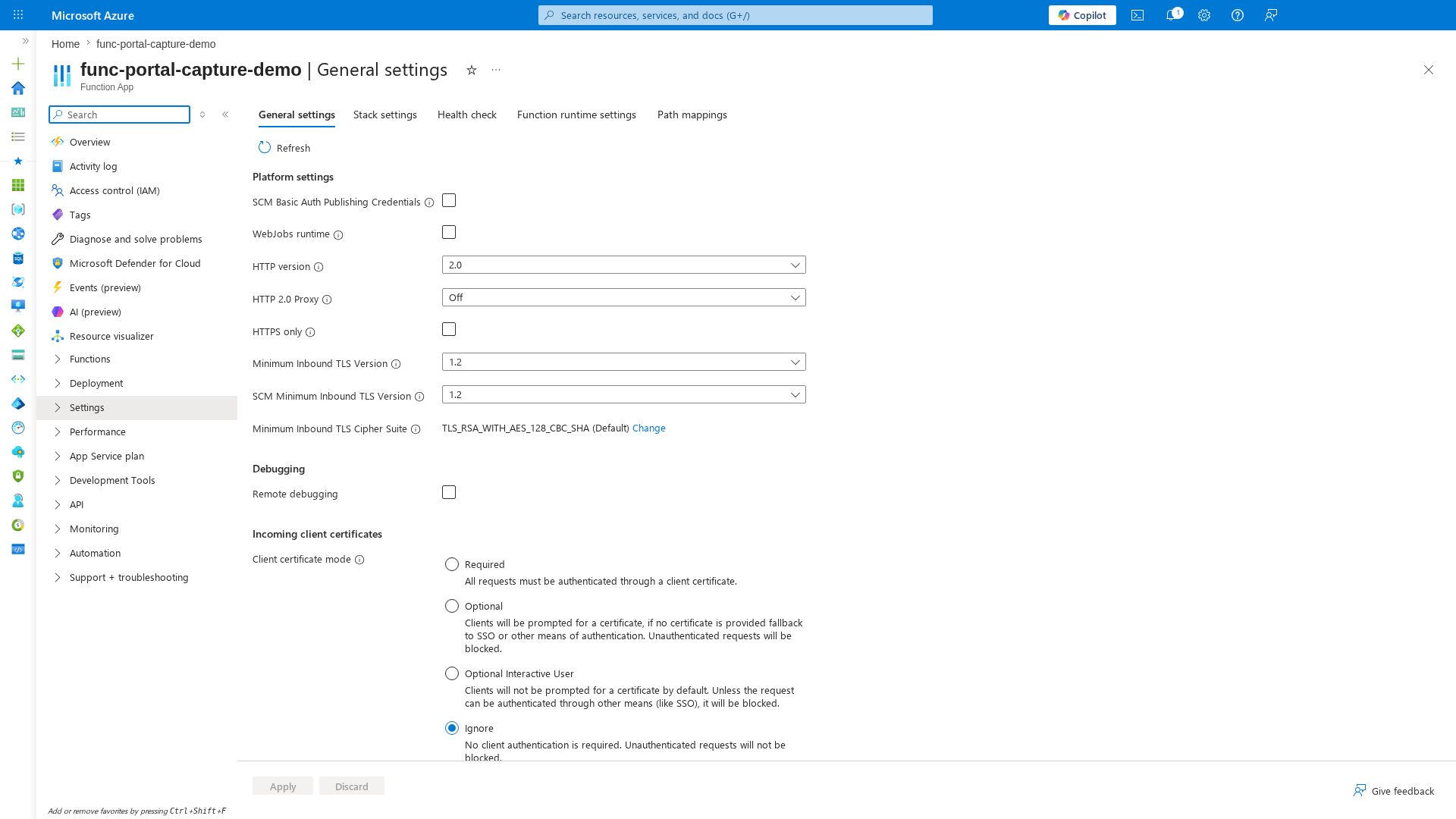

Inbound network controls¶

1) Access restrictions (IP/CIDR)¶

Use access restrictions to allow or deny source networks.

az functionapp config access-restriction add \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --rule-name "AllowCorporate" \
  --priority 100 \
  --action Allow \
  --ip-address "203.0.113.0/24"

List current restrictions:

az webapp config access-restriction show \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --output json

Example output (sanitized):

{
  "ipSecurityRestrictions": [
    {
      "name": "AllowCorporate",
      "priority": 100,
      "action": "Allow",
      "ipAddress": "203.0.113.0/24"
    },
    {
      "name": "DenyAll",
      "priority": 2147483647,
      "action": "Deny",
      "ipAddress": "Any"
    }
  ],
  "scmIpSecurityRestrictionsUseMain": true
}

2) Private endpoint for Function App inbound¶

For private ingress, place the Function App behind a private endpoint (Flex, Premium, Dedicated).

az network private-endpoint create \
  --name "pe-$APP_NAME" \
  --resource-group "$RG" \
  --vnet-name "$VNET_NAME" \
  --subnet "$PE_SUBNET" \
  --private-connection-resource-id "/subscriptions/<subscription-id>/resourceGroups/$RG/providers/Microsoft.Web/sites/$APP_NAME" \
  --group-id "sites" \
  --connection-name "pe-conn-$APP_NAME"

Inspect private endpoint status:

az network private-endpoint show \
  --name "pe-$APP_NAME" \
  --resource-group "$RG" \
  --output json

Example output (sanitized):

{
  "name": "pe-<app-name>",
  "resourceGroup": "<resource-group>",
  "customDnsConfigs": [
    {
      "fqdn": "<app-name>.privatelink.azurewebsites.net",
      "ipAddresses": [
        "10.40.2.8"
      ]
    }
  ],
  "privateLinkServiceConnections": [
    {
      "privateLinkServiceConnectionState": {
        "status": "Approved"
      }
    }
  ]
}

3) Zero-trust ingress architecture pattern¶

flowchart LR
    U[User] --> FD[Front Door + WAF]
    FD --> APIM[API Management]
    APIM --> PE[Private Endpoint: Function App]
    PE --> FA[Function App]
    FA --> ID["Microsoft Entra ID / Managed Identity"]

Outbound network controls¶

1) VNet integration¶

VNet integration enables private outbound access from the Function App to resources in VNets or connected networks.

az functionapp vnet-integration add \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --vnet "$VNET_NAME" \
  --subnet "$INTEGRATION_SUBNET"

Validate integration:

az functionapp vnet-integration list \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --output json

Example output (sanitized):

[
  {
    "name": "<vnet-name>",
    "isSwift": true,
    "dnsServers": "168.63.129.16",
    "vnetResourceId": "/subscriptions/<subscription-id>/resourceGroups/<resource-group>/providers/Microsoft.Network/virtualNetworks/<vnet-name>"
  }
]

2) Route-all pattern¶

To force all egress through VNet controls on plans that support this app setting (for example, Premium and Dedicated):

az functionapp config appsettings set \
  --name "$APP_NAME" \
  --resource-group "$RG" \
  --settings "WEBSITE_VNET_ROUTE_ALL=1"

Flex Consumption already routes outbound traffic through the integrated VNet path, so WEBSITE_VNET_ROUTE_ALL=1 is not required on Flex.

3) NAT Gateway for stable outbound IP¶

Attach NAT Gateway to the integration subnet when downstream allowlists require stable egress identity.

flowchart TD
    FA[Function App instances] --> SUBNET[Integration subnet]
    SUBNET --> NAT[NAT Gateway]
    NAT --> PIP[Public IP or prefix]
    PIP --> DEST[Approved internet destinations]

Outbound SNAT and connection planning¶

SNAT exhaustion appears when many outbound sockets are opened to the same destination without reuse.

Planning baseline: 1. Reuse SDK/HTTP clients; avoid one client per request. 2. Prefer pooled transport defaults unless measured otherwise.

Observable symptoms: - Intermittent dependency timeouts at peak traffic. - Error bursts that recover after scale events or restarts. - Heavier impact on high fan-out destinations.

Mitigation options: - Add NAT Gateway capacity for larger outbound concurrency. - Reduce avoidable parallel outbound operations.

Subnet delegation requirements¶

When configuring VNet integration, subnet delegation depends on plan: - Flex Consumption: Microsoft.App/environments - Premium and Dedicated: Microsoft.Web/serverFarms Plan this before deployment to avoid subnet redesign.

DNS design for private endpoints¶

Private endpoint architectures require private DNS resolution.

Recommended baseline: - Use privatelink.azurewebsites.net naming for Function App private endpoint records. - Link private DNS zones to every VNet that must resolve private endpoints. - Configure conditional forwarding in hybrid DNS environments.

flowchart TD
    VM[Client in VNet] --> DNS[Private DNS zone]
    DNS --> IP[Private IP for Function App]
    IP --> APP[Function App private endpoint]

DNS resolution sequence (private endpoint path):

sequenceDiagram
    participant C as Client in VNet
    participant R as DNS Resolver
    participant Z as Private DNS Zone
    participant P as Function App Private Endpoint
    C->>R: Query <app-name>.azurewebsites.net
    R->>Z: Resolve private mapping
    Z-->>R: 10.40.2.8
    R-->>C: Return private A record
    C->>P: HTTPS request to private IP
    P-->>C: HTTPS response

Hybrid connectivity¶

For on-premises integration: - Premium and Dedicated support Hybrid Connections. - VNet integration with VPN/ExpressRoute supports broader private reachability. Use Hybrid Connections when simple TCP reachability is enough and full private routing is not required.

Flex Consumption networking notes¶

• Flex supports VNet integration and private endpoints.
• Flex has no Kudu/SCM site.
• Runtime storage integration is identity-based.
• Blob trigger ingestion model on Flex should use Event Grid source.

Security alignment¶

Networking should align with identity and authorization controls: - Function authorization level for endpoint keys. - App Service Authentication for user/workload identity. - Managed identity for service-to-service access. - NSG/firewall policy for egress governance.

Common architecture patterns¶

Public API pattern¶

• Public endpoint with auth keys or App Service Authentication.
• Best fit: Consumption or Flex for low idle cost.

Private backend API pattern¶

• Public ingress via APIM.
• Function outbound via VNet integration to private data services.
• Best fit: Flex or Premium.

Private-only workload pattern¶

• Inbound private endpoint only.
• No public network access.
• Best fit: Premium or Dedicated (or Flex when one-app-per-plan is acceptable).

Troubleshooting matrix¶

Validation checklist¶

• Confirm plan supports required network features.
• Confirm subnet delegation is correct.
• Confirm DNS resolves private endpoints as expected.
• Confirm egress path (default vs route-all) matches policy.
• Confirm downstream allowlists include NAT egress IP if used.

Advanced Topics¶

Zero-trust ingress pattern¶

A practical zero-trust ingress model for Functions is: 1. Front Door + WAF at the edge. 2. APIM policy enforcement in front of backend APIs. 3. Function App private endpoint only. 4. Identity-first authorization at every hop.

Route-all outbound strategy¶

• Enable WEBSITE_VNET_ROUTE_ALL=1 for controlled egress paths on Premium/Dedicated.
• Flex Consumption already uses VNet-routed outbound behavior and does not require this setting.
• Force internet egress through firewall and NAT controls.

Multi-environment DNS governance¶

For dev/test/prod environments: - Standardize zone naming and ownership. - Define zone-link conventions in infrastructure code. - Version control conditional forwarder rules. - Add DNS resolution checks in release validation.

SNAT exhaustion detection and mitigation¶

Detection approach: 1. Inspect dependency timeout bursts. 2. Correlate with scale events and traffic fan-out. 3. Identify high-frequency destination endpoints.

Mitigation approach: 1. Reuse clients and improve pooling behavior. 2. Reduce avoidable parallel outbound calls. 3. Increase NAT capacity and retest.

NAT Gateway sizing¶

NAT sizing depends on concurrency, destination mix, and connection lifetime. - Start with one gateway and one public IP for moderate workloads. - Add public IPs/prefix capacity for high-volume burst traffic. - Validate sizing using load tests and telemetry, not assumptions.

Language-Specific Details¶

Networking architecture is shared, but connection behavior differs by runtime. - Python guide index - Node.js guide index - Java guide index - .NET guide index

Runtime focus areas: - Python: process model and HTTP client reuse. - Node.js/.NET/Java: use pooled clients and tuned connection lifetime settings.
