Usage Guide: azure-functions-openapi

This guide walks you through documenting Python Azure Functions using OpenAPI (Swagger) via azure-functions-openapi. It focuses on practical usage based on a full-featured Todo API example.

🔗 For installation and setup, see the Installation Guide. 🔍 For full API reference of the decorator, see the @openapi API Reference.

---

@openapi Decorator

Use the @openapi decorator to attach OpenAPI metadata to each function. This metadata is used at runtime to generate:

• /openapi.json: OpenAPI schema in JSON format
• /openapi.yaml: (optional) YAML version of the schema
• /docs: Swagger UI

See the full list of supported parameters in the API Reference.

Example

@openapi(
    summary="Create a new todo",
    description="Add a new todo item with a title.",
    tags=["Todos"],
    operation_id="createTodo",
    route="/api/create_todo",
    method="post",
    request_model=TodoCreateRequest,
    response_model=TodoResponse,
    response={
        201: {"description": "Todo created"},
        400: {"description": "Invalid request"}
    }
)

---

Pydantic Models

Define request and response models using Pydantic v2. These models are converted into OpenAPI-compatible schemas and embedded under components.schemas in the spec.

class TodoCreateRequest(BaseModel):
    title: str

class TodoResponse(BaseModel):
    id: int
    title: str
    done: bool

✅ Make sure your project uses Pydantic v2. Pydantic v1 is not supported.

---

Parameters (Query / Path / Header)

Use the parameters argument to define additional request parameters such as query strings, path variables, or headers.

parameters=[
    {
        "name": "id",
        "in": "query",  # or: path, header
        "required": True,
        "description": "Todo item ID",
        "schema": {"type": "integer"}
    }
]

Each parameter follows the OpenAPI 3.0 format.

---

Response Schema Options

There are two ways to define responses:

1. response_model=TodoResponse Automatically creates schema for 200 status code

2. response={...} Manually define multiple response codes and content types

You can use both together to document a default response and special cases (e.g., 400, 404).

---

HTTP Methods & Routing

To correctly reflect your API in the OpenAPI spec, set both:

• route="..." → path exposed in spec
• method="..." → HTTP verb (GET, POST, PUT, DELETE, etc.)

Also ensure your Azure Function is decorated with the corresponding route:

@app.route(route="create_todo", methods=["POST"])

---

Exposing OpenAPI Docs

These endpoints must be manually added to your FunctionApp:

@app.route(route="openapi.json")
def openapi_spec(req: func.HttpRequest) -> func.HttpResponse:
    return func.HttpResponse(get_openapi_json())

@app.route(route="docs")
def swagger_ui(req: func.HttpRequest) -> func.HttpResponse:
    return render_swagger_ui()

• /openapi.yaml also available if you install PyYAML

---

JSON & YAML Output

Route	Format	Description
/openapi.json	JSON	Full OpenAPI schema for API consumers
/openapi.yaml	YAML	(Optional) Easier to read and edit manually
/docs	Swagger UI	Developer-friendly interactive UI

---

End-to-End Example: Todo API

The Todo example implements the following operations:

Function	Method	Route	Summary
create_todo	POST	/api/create_todo	Create a new todo
list_todos	GET	/api/list_todos	List all todos
get_todo	GET	/api/get_todo	Get todo by ID
update_todo	PUT	/api/update_todo	Update todo
delete_todo	DELETE	/api/delete_todo	Delete todo

Each function demonstrates:

• How to use @openapi to define documentation metadata
• Parameterized endpoints (query, header)
• Typed request/response models with Pydantic
• Swagger UI output for all routes

---

You can import the generated spec into tools like:

• Postman
• SwaggerHub
• Azure API Management

---

Happy documenting!

Function Endpoints

Once the app is running (func start), the following routes will be available:

Function	Method	Route	Description
create_todo	POST	http://localhost:7071/api/create_todo	Create a new todo
delete_todo	DELETE	http://localhost:7071/api/delete_todo	Delete a todo by ID
get_todo	GET	http://localhost:7071/api/get_todo	Get todo by ID
list_todos	GET	http://localhost:7071/api/list_todos	List all todos
update_todo	PUT	http://localhost:7071/api/update_todo	Update a todo
openapi_spec	GET	http://localhost:7071/api/openapi.json	OpenAPI JSON spec
openapi_yaml_spec	GET	http://localhost:7071/api/openapi.yaml	OpenAPI YAML spec
swagger_ui	GET	http://localhost:7071/api/docs	Swagger UI

---

Sample OpenAPI Output (JSON)

Example snippet from /openapi.json:

{
  "openapi": "3.0.0",
  "info": {
    "title": "API",
    "version": "1.0.0"
  },
  "paths": {
    "/api/create_todo": {
      "post": {
        "summary": "Create a new todo",
        "description": "Add a new todo item with a title.",
        "operationId": "createTodo",
        "tags": ["Todos"],
        "requestBody": {
          "required": true,
          "content": {
            "application/json": {
              "schema": {
                "title": "TodoCreateRequest",
                "type": "object",
                "properties": {
                  "title": { "type": "string" }
                },
                "required": ["title"]
              }
            }
          }
        },
        "responses": {
          "201": { "description": "Todo created successfully" },
          "400": { "description": "Invalid request" },
          "200": {
            "description": "Successful Response",
            "content": {
              "application/json": {
                "schema": {
                  "title": "TodoResponse",
                  "type": "object",
                  "properties": {
                    "id": { "type": "integer" },
                    "title": { "type": "string" },
                    "done": { "type": "boolean" }
                  },
                  "required": ["id", "title", "done"]
                }
              }
            }
          }
        }
      }
    }
  }
}

This output can be imported into tools like SwaggerHub, Postman, or Azure API Management.

---

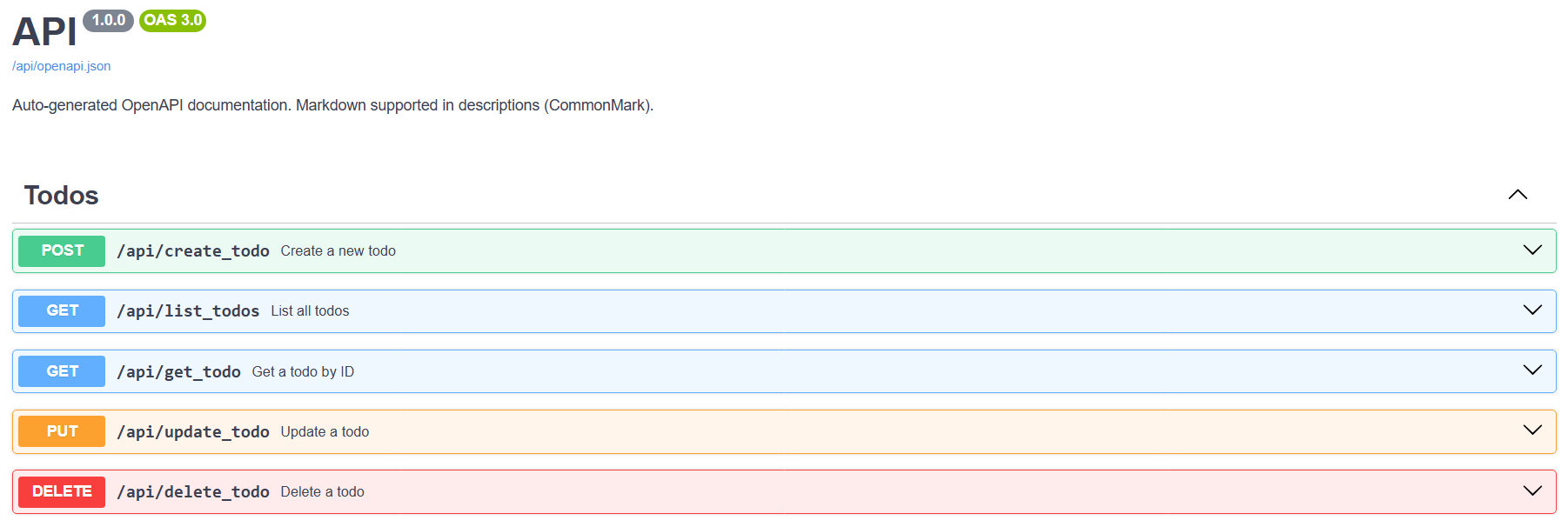

Swagger UI Preview

Below is a preview of the automatically generated Swagger UI:
