Windows Kudu and Diagnostic Tools (Azure App Service Windows)¶

1. Summary¶

Symptom (when to use this playbook -- "I need to diagnose but don't know which tool")¶

On Azure App Service Windows, an incident is active (startup delay, intermittent 5xx, memory pressure, hung worker, background job issue), but responders are unsure whether to start with Process Explorer, Debug Console, dump capture, Log Stream, Site Extensions, WebJobs views, or Kudu REST endpoints.

Why this scenario is confusing (so many tools, unclear which to use when)¶

Windows App Service exposes overlapping diagnostics in the Kudu SCM site. Multiple tools appear to solve the same problem, but each tool provides a different evidence type:

• Process state and thread/memory internals (Process Explorer).
• File and runtime shell access (Debug Console CMD/PowerShell).
• Point-in-time crash/hang state capture (Diagnostic Dump).
• Live operational signals during reproduction (Log Stream).
• Extended agents/profilers (Site Extensions).

Without a selection model, teams collect noisy data, miss the first reproducible failure window, and delay mitigation.

Tool selection decision flow (mermaid diagram)¶

graph TD
    A[Windows App Service incident] --> B{What evidence is missing?}
    B -->|Live process CPU/memory/thread/handle state| H1[H1: Need real-time process monitoring]
    B -->|Need offline crash or hang analysis| H2[H2: Need to capture a memory dump]
    B -->|Need file/config/runtime script evidence| H3[H3: Need to inspect filesystem state]
    B -->|Need automatic recycle or mitigation action| H4[H4: Need automated recovery]
    B -->|Need request/CPU performance traces over time| H5[H5: Need performance profiling]

    H1 --> T1[Use Process Explorer UI]
    H2 --> T2[Use Diagnostic Dump or /api/dump]
    H3 --> T3[Use Debug Console or /api/vfs]
    H4 --> T4[Use Auto-Heal rules]
    H5 --> T5[Use Site Extensions and Log Stream]

    T1 --> Z[Correlate with Log Stream and KQL]
    T2 --> Z
    T3 --> Z
    T4 --> Z
    T5 --> Z

Limitations¶

• This playbook is Windows-focused; Linux tooling differs.
• Linux contrast:
  • Linux typically uses SSH console; Windows uses Kudu Debug Console (CMD/PowerShell).
  • Linux supports /api/processes but does not provide the Process Explorer UI.
  • Linux does not support Site Extensions in the same model used by Windows App Service.
  • Windows supports web.config Auto-Heal rules; Linux uses a different mechanism.
• Kudu tools require SCM endpoint reachability (https://<app-name>.scm.azurewebsites.net).
• Dump capture and profiling can increase CPU, I/O, and storage usage during incident handling.
• Some actions require contributor-level permissions and deployment credentials or Microsoft Entra-authenticated session.

Quick Conclusion¶

Choose tool by missing evidence, not by familiarity: Process Explorer for live process internals, Diagnostic Dump for offline root-cause analysis, Debug Console for file/runtime validation, Auto-Heal for immediate platform-side mitigation, and Site Extensions for deeper profiling. Always correlate with Log Stream and KQL timeline before concluding root cause.

2. Common Misreadings¶

• "Kudu is only for deployment." (Kudu is also a diagnostic control plane on Windows.)
• "Log Stream is enough for hangs." (Hangs often require process/thread visibility or dumps.)
• "Process Explorer replaces dump analysis." (Explorer is live state; dumps preserve forensic state for offline debugging.)
• "Debug Console edits are safe long-term fixes." (Manual edits can drift from IaC/source-controlled config.)
• "Auto-Heal proves app bug is fixed." (Auto-Heal can mask symptoms by recycling without removing root cause.)

3. Competing Hypotheses (which tool is the right one)¶

• H1: Need real-time process monitoring -> Process Explorer
  • Use when symptom requires immediate per-process visibility (w3wp.exe, DotNetCore.exe, node.exe), thread count changes, memory growth, or handle leaks.
• H2: Need to capture a memory dump -> Diagnostic Dump / REST API
  • Use when process hangs, crashes, deadlocks, or intermittent high CPU cannot be explained from logs alone.
• H3: Need to inspect filesystem state -> Debug Console
  • Use when startup files, web.config, deployment artifacts, temp files, or generated content must be verified directly.
• H4: Need automated recovery -> Auto-Heal configuration
  • Use when recurring failure conditions should trigger recycle/actions automatically to reduce impact while investigation continues.
• H5: Need performance profiling -> Site Extensions (Application Insights Profiler, Crash Diagnoser)
  • Use when request latency and code-level hot paths must be profiled beyond standard platform logs.

4. What to Check First¶

Metrics¶

• Http5xx and Requests trend around incident time.
• Memory working set trend for worker processes.
• CPU percentage and request latency percentile spikes.
• Restart count and instance recycle frequency.

Logs¶

• AppServiceHTTPLogs for request status and latency windows.
• Application logs from Log Stream for real-time failure signatures.
• Windows EventLog and application diagnostics streams where enabled.
• Deployment and startup logs around regression windows.

Platform Signals¶

• Current process list (w3wp.exe, DotNetCore.exe, node.exe) and parent-child relationships.
• Presence of stale temp artifacts under D:\home\LogFiles and D:\home\site\wwwroot.
• Existing Auto-Heal settings and trigger history.
• Installed Site Extensions and their operational status.

Core Commands (long flags)¶

az webapp show --resource-group <resource-group> --name <app-name> --output json
az webapp config show --resource-group <resource-group> --name <app-name> --output json
az webapp log config --resource-group <resource-group> --name <app-name> --web-server-logging filesystem --detailed-error-messages true --failed-request-tracing true
az webapp log tail --resource-group <resource-group> --name <app-name>

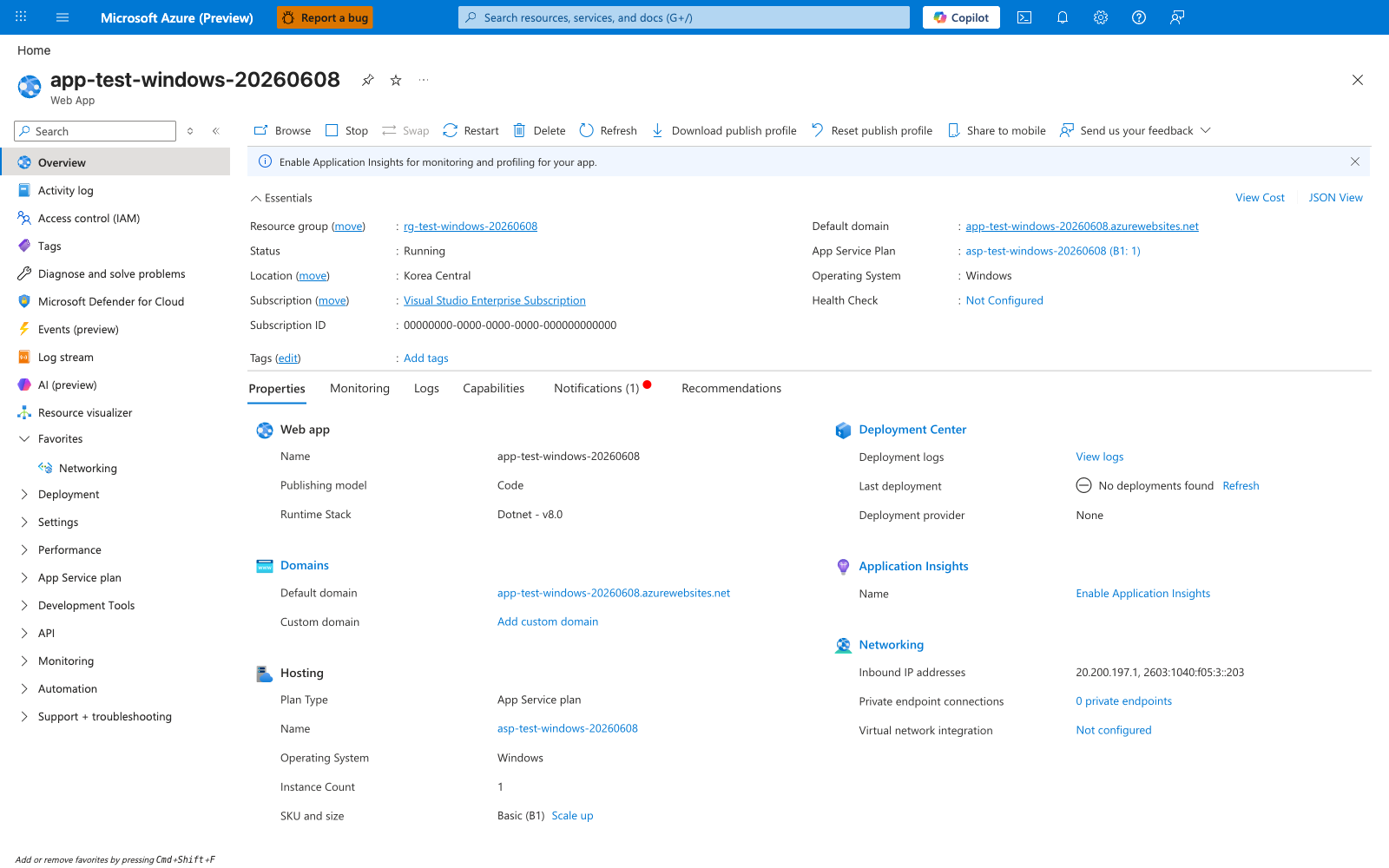

Portal view: Overview blade confirming Windows runtime¶

The Windows value appears under both the Essentials Operating System field and the Hosting card's Operating System row, and the Dotnet - v8.0 string appears under the Web app card's Runtime Stack row. The left navigation rail also exposes Log stream as a top-level menu entry; the same Log Stream string appears in this playbook's Section 5 evidence table.

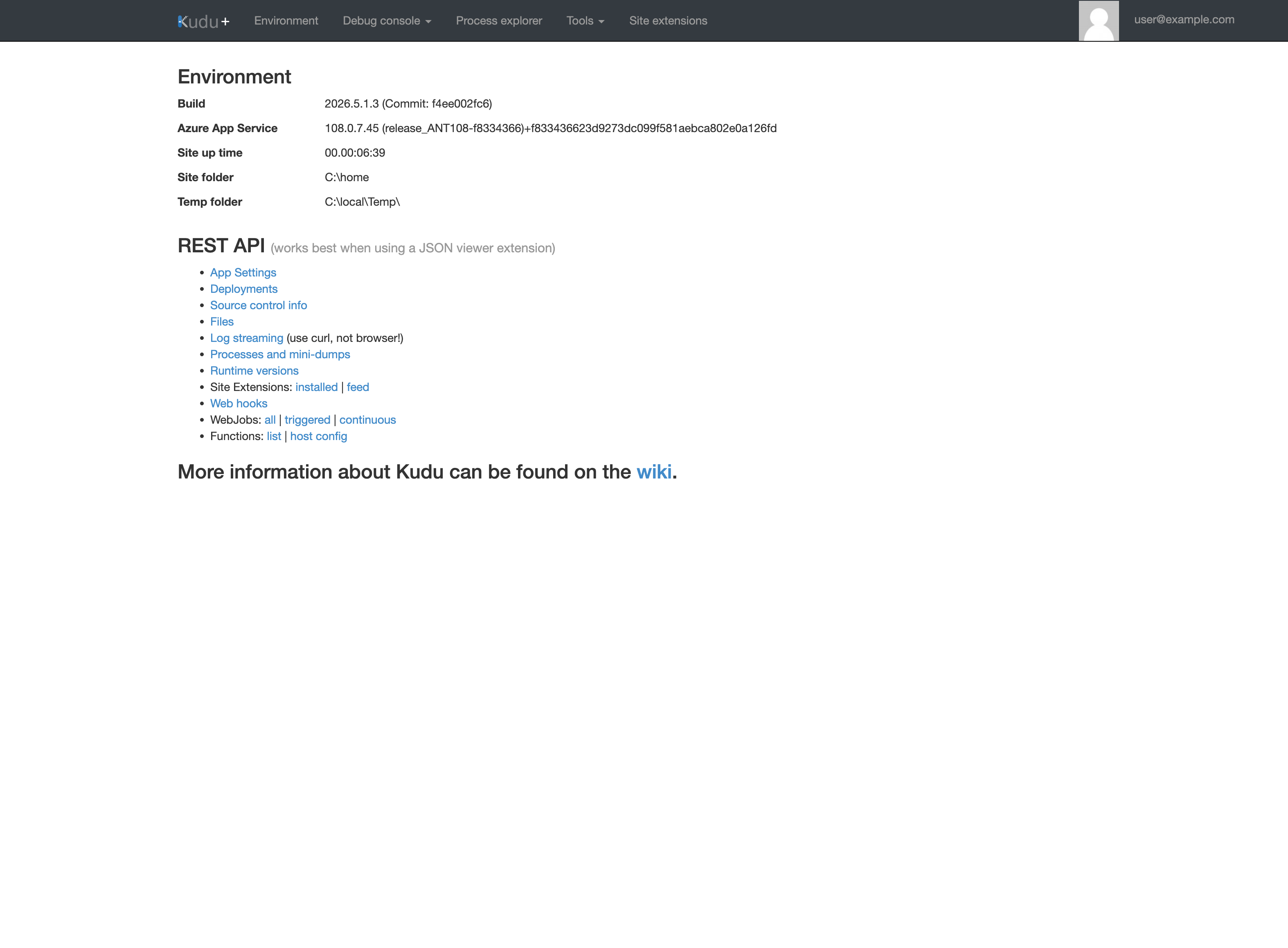

Portal view: Kudu Environment home with REST API surface inventory¶

Of the visible top navigation entries, Process explorer, Debug console, and Site extensions carry the same labels this playbook's Windows Kudu Tool Map enumerates as the Process Explorer, Debug Console, and Site Extensions rows.

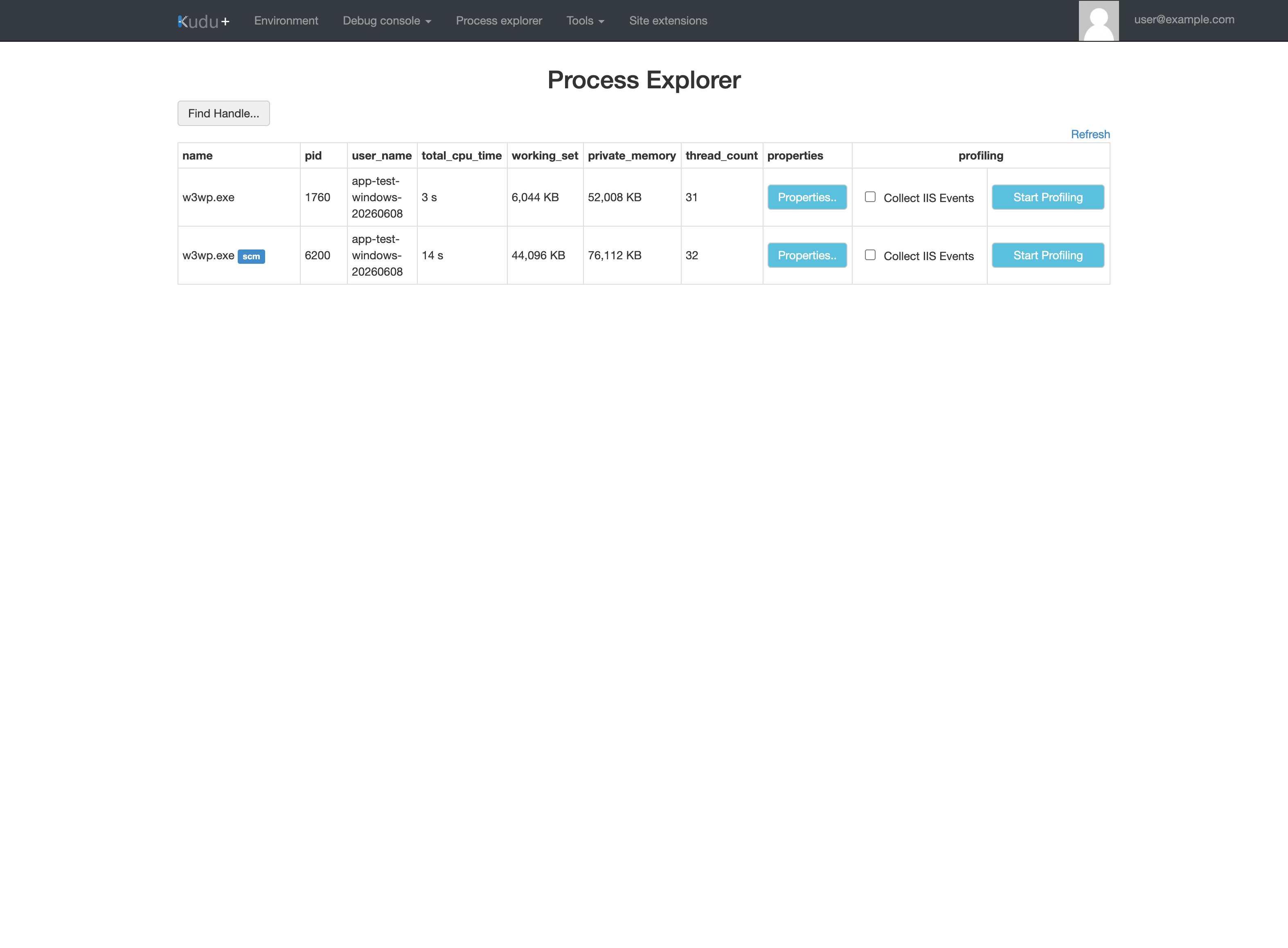

Portal view: Kudu Process Explorer table with live w3wp.exe rows¶

The visible total_cpu_time, working_set, private_memory, and thread_count columns include the per-process measurements this playbook's Process Explorer checklist names as "CPU, private bytes, thread count". The two visible w3wp.exe rows (one carrying an scm badge) match the w3wp.exe worker-process string this playbook's H1 hypothesis text names.

5. Evidence to Collect¶

Required Evidence¶

• Process snapshot from Process Explorer showing worker process CPU/memory/thread/handle state.
• Dump capture metadata (timestamp, process ID, process name, symptom at capture time).
• Debug Console directory listing and key file evidence (web.config, startup scripts, generated logs).
• Log Stream segment covering reproduction window.
• Site Extensions inventory and profiler/diagnoser output where used.
• WebJobs status (continuous/triggered runs, failures, queue delays).
• Kudu REST API response artifacts for /api/processes, /api/dump, /api/vfs.

Windows Kudu Tool Map¶

Kudu REST API calls (curl examples)¶

# List running processes (Windows worker inspection)
curl --silent --show-error --user "<deployment-user>:<deployment-password>" "https://<app-name>.scm.azurewebsites.net/api/processes"

# Trigger a dump for a specific process ID (example PID 1234)
curl --silent --show-error --request POST --user "<deployment-user>:<deployment-password>" "https://<app-name>.scm.azurewebsites.net/api/dump?processId=1234"

# Read web.config through virtual file system endpoint
curl --silent --show-error --user "<deployment-user>:<deployment-password>" "https://<app-name>.scm.azurewebsites.net/api/vfs/site/wwwroot/web.config"

Example Output (illustrative):

[
  {
    "id": 1234,
    "name": "w3wp.exe",
    "href": "https://<app-name>.scm.azurewebsites.net/api/processes/1234"
  },
  {
    "id": 5678,
    "name": "DotNetCore.exe",
    "href": "https://<app-name>.scm.azurewebsites.net/api/processes/5678"
  }
]

Process Explorer checklist¶

• Validate expected worker process exists and is stable over time.
• Capture CPU, private bytes, thread count, and handle count during symptom window.
• Compare process count with expected worker model (single vs multiple workers).
• Record process start time to correlate with recycle events.

Debug Console checklist (CMD and PowerShell)¶

• Confirm deployment artifact presence under D:\home\site\wwwroot.
• Validate runtime-generated files under D:\home\LogFiles.
• Inspect web.config and startup scripts for drift from source control.
• Validate directory permissions and writable paths used by the app.
• Execute minimal diagnostics commands (PowerShell and CMD) and preserve output.

# PowerShell in Kudu Debug Console
Get-ChildItem -Path "D:\home\site\wwwroot" | Select-Object Name,Length,LastWriteTime
Get-Content -Path "D:\home\site\wwwroot\web.config"
Get-ChildItem -Path "D:\home\LogFiles" -Recurse | Sort-Object LastWriteTime -Descending | Select-Object -First 20 FullName,LastWriteTime

Auto-Heal sample (Windows web.config)¶

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <system.webServer>
    <healthMonitoring enabled="true" />
    <autoHeal enabled="true">
      <triggers>
        <privateBytesInKB>2097152</privateBytesInKB>
        <requests count="1500" timeInterval="00:01:00" />
        <statusCodes>
          <add statusCode="500" subStatus="0" win32Status="0" count="20" timeInterval="00:02:00" />
        </statusCodes>
      </triggers>
      <actions>
        <action type="Recycle" />
      </actions>
    </autoHeal>
  </system.webServer>
</configuration>

KQL Queries with Example Output¶

Query 1: Identify request failure burst before recycle¶

AppServiceHTTPLogs
| where TimeGenerated > ago(6h)
| summarize requests=count(), failures=countif(ScStatus >= 500), p95=percentile(TimeTaken, 95) by bin(TimeGenerated, 5m)
| order by TimeGenerated asc

Example Output (illustrative):

Query 2: Correlate recycle windows with process instability¶

AppServicePlatformLogs
| where TimeGenerated > ago(6h)
| where Message has_any ("Recycle", "Stopping", "Worker", "AutoHeal")
| project TimeGenerated, Level, Message
| order by TimeGenerated asc

Example Output (illustrative):

Query 3: Confirm background job impact (WebJobs)¶

AppServiceConsoleLogs
| where TimeGenerated > ago(6h)
| where ResultDescription has_any ("WebJob", "Queue", "Retry", "Unhandled", "Exception")
| project TimeGenerated, Level, ResultDescription
| order by TimeGenerated desc

Example Output (illustrative):

CLI Investigation Commands (long flags)¶

# Confirm runtime and plan context
az webapp show --resource-group <resource-group> --name <app-name> --query "{kind:kind,reserved:reserved,defaultHostName:defaultHostName}" --output json

# Stream logs while reproducing incident
az webapp log tail --resource-group <resource-group> --name <app-name>

# Enable detailed log settings for temporary diagnostics window
az webapp log config --resource-group <resource-group> --name <app-name> --application-logging filesystem --detailed-error-messages true --failed-request-tracing true --level information

6. Validation and Disproof by Hypothesis (tool selection matrix)¶

Tool Selection Matrix¶

H1: Need real-time process monitoring -> Process Explorer¶

• Signals that support
  • w3wp.exe or runtime process shows sustained CPU or memory growth.
  • Thread or handle count increases continuously without release.
  • Symptom reproduces while process remains alive but unhealthy.
• Signals that weaken
  • Process metrics are stable while failures persist.
  • Errors are clearly configuration/file related with no resource pressure.
• What to verify
  1. Capture at least two snapshots: baseline and incident peak.
  2. Confirm process identity and start time align with failure timeline.

H2: Need to capture a memory dump -> Diagnostic Dump / REST API¶

• Signals that support
  • Requests stall while process appears alive.
  • Crash loops occur with insufficient stack traces in application logs.
  • Deadlock suspicion from blocked threads and no forward progress.
• Signals that weaken
  • Issue is deterministic config error visible immediately in logs.
  • Incident is purely dependency timeout without worker hang/crash.
• What to verify
  1. Capture dump at symptom peak and preserve process metadata.
  2. Correlate dump timestamp with Log Stream and KQL evidence.

H3: Need to inspect filesystem state -> Debug Console¶

• Signals that support
  • Startup references missing file, path mismatch, or malformed config.
  • Runtime cannot write/read expected directories.
  • Slot swap or deployment drift suspected.
• Signals that weaken
  • Filesystem and config match known-good commit and generated state.
  • Failures occur despite no file change across reproduction attempts.
• What to verify
  1. Validate web.config, binaries/scripts, and generated artifacts.
  2. Compare incident slot file state with source-controlled artifact manifest.

H4: Need automated recovery -> Auto-Heal configuration¶

• Signals that support
  • Recurring threshold breach (memory, request burst, status code spikes).
  • Controlled recycle reduces outage duration.
  • Trigger condition is measurable and repeatable.
• Signals that weaken
  • Recycle has no effect or causes additional instability.
  • Trigger thresholds do not correlate with actual user impact.
• What to verify
  1. Confirm trigger-action pair and observed event timeline.
  2. Ensure Auto-Heal is treated as mitigation while root-cause work continues.

H5: Need performance profiling -> Site Extensions (Application Insights Profiler)¶

• Signals that support
  • High latency without obvious errors from standard logs.
  • CPU usage is high but stack-level hot path is unknown.
  • Incident reproduces under load and requires code-path attribution.
• Signals that weaken
  • Latency is dominated by external dependency with clear timeout logs.
  • Profiler data is insufficient due non-reproducible workload.
• What to verify
  1. Install/enable the correct extension and confirm data ingestion.
  2. Correlate profiler hotspots with request traces and failure windows.

Normal vs Abnormal Comparison¶

7. Likely Root Cause Patterns¶

• Pattern A: Memory growth in worker process
  • Process Explorer shows private bytes growth until recycle.
  • Auto-Heal trigger confirms symptom but not root cause.
• Pattern B: Hung request pipeline
  • Log Stream shows request starts with no completions.
  • Dump analysis reveals blocked threads or deadlock.
• Pattern C: Filesystem/config drift
  • Debug Console reveals missing startup artifact or divergent web.config.
  • /api/vfs confirms state mismatch across slots/instances.
• Pattern D: Background job contention
  • WebJobs failures coincide with frontend latency and error spikes.
  • Queue backlog or retry storms reduce app responsiveness.
• Pattern E: Invisible performance hotspot
  • Basic logs show slow requests without explicit exception.
  • Site Extensions profiler identifies expensive code path/dependency.

8. Immediate Mitigations¶

• Activate targeted Auto-Heal rules to reduce incident duration while deeper analysis runs.
• Capture one high-value dump during peak failure before recycling wipes evidence.
• Use Debug Console to revert obvious config/file drift to known-good baseline.
• Temporarily reduce background job concurrency when WebJobs amplify startup pressure.
• Enable focused logging window (application + failed request tracing) and stop after incident to limit noise/cost.

9. Prevention¶

• Standardize an incident runbook mapping symptom classes to Kudu tools and required artifacts.
• Keep web.config and Auto-Heal policy source-controlled and validated in pre-production slots.
• Add recurring checks for Site Extensions currency and diagnostic agent health.
• Document Windows-vs-Linux diagnostic differences in operational onboarding to avoid tool mismatch.

See Also¶

• Deployment Succeeded, Startup Failed
• Failed to Forward Request
• Warm-up vs Health Check
• Troubleshooting KQL
• Diagnostics Decision Guide

Sources¶

• Kudu service for Azure App Service
• Azure App Service diagnostics overview
• Enable diagnostic logging for apps in Azure App Service
• Auto-Heal in Azure App Service
