Container Binding Errors

Scenario: App starts but is unreachable, or startup fails with bind/listen issues. Data Source: AppServiceConsoleLogs Purpose: Detects log lines related to port binding, listen socket conflicts, and loopback binding mistakes.

graph TD
    A[AppServiceConsoleLogs] -->|Keyword Filter| B[bind / listen / port / EADDRINUSE]
    B --> C[Binding Event Timeline]
    C --> D[Detect Port Mismatch or Conflict]

Run It in the Portal

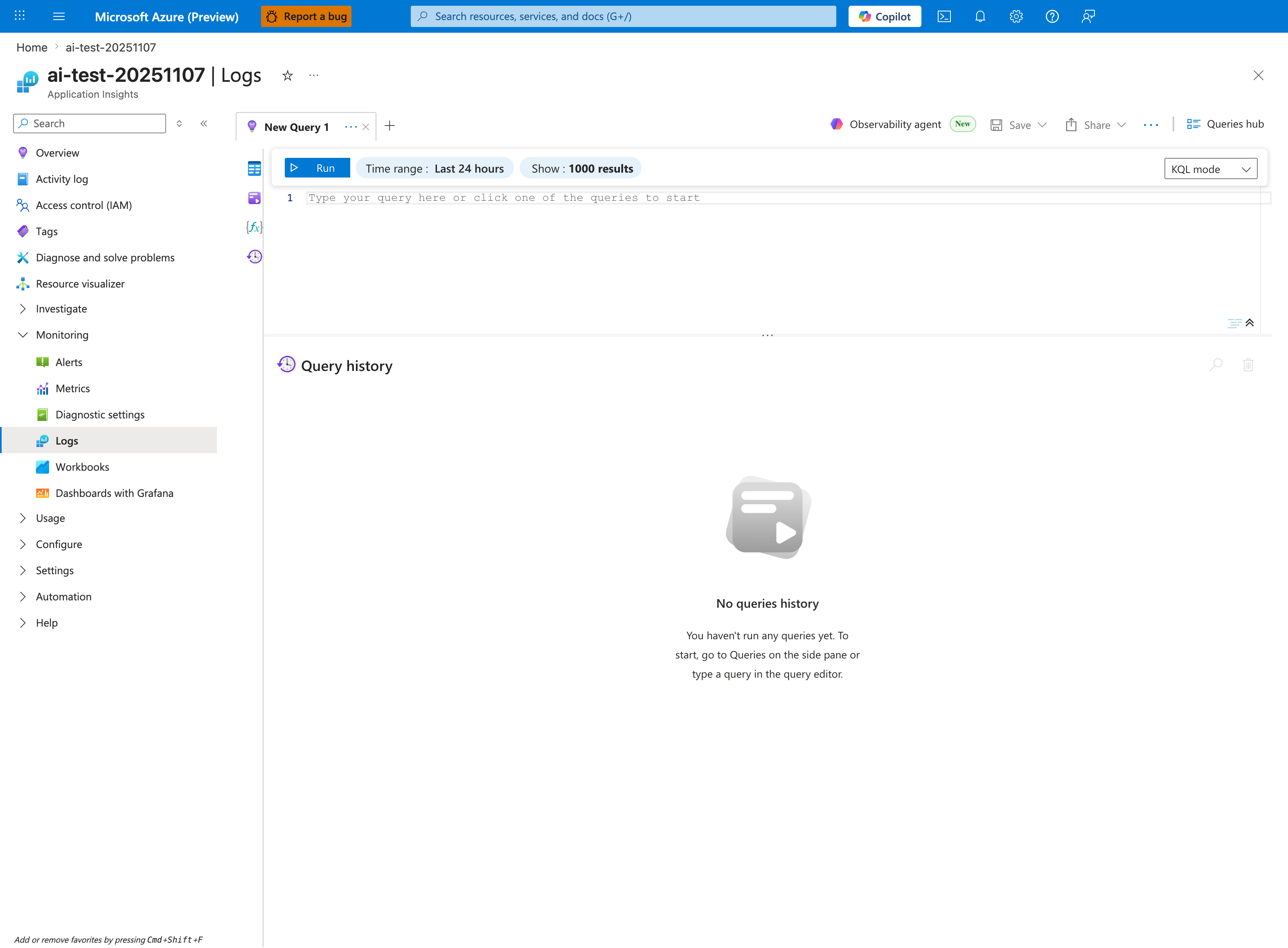

Portal view: Logs blade (Log Analytics query editor)

Azure portal Logs blade for ai-test-20251107 (Application Insights) with a New Query 1 tab open, top-right controls Observability agent (New), Save, Share, Queries hub, and an inline toolbar Run + Time range: Last 24 hours + Show: 1000 results + KQL mode dropdown. The query editor shows placeholder text "Type your query here or click one of the queries to start" on line 1. Below the editor a Query history pane reads "No queries history — You haven't run any queries yet. To start, go to Queries on the side pane or type a query in the query editor." Left nav under Monitoring lists Alerts, Metrics, Diagnostic settings, Logs (selected), Workbooks, Dashboards with Grafana; the Investigate group above is collapsed.

The Logs blade is where the container-binding query below is pasted - this capture shows the Application Insights Logs experience (ai-test-20251107), but the workspace-based Log Analytics blade renders the same New Query 1 tab and Run toolbar. Replace the placeholder Type your query here or click one of the queries to start with the AppServiceConsoleLogs | where ResultDescription has_any ("bind", "listen", ...) block; tighten the inline Time range selector from the default Last 24 hours shown here to Last hour so it matches the ago(1h) filter inside the query. Because the query projects only TimeGenerated and ResultDescription, results render as a two-column tabular grid in the lower pane below the placeholder editor.

Query

AppServiceConsoleLogs
| where TimeGenerated > ago(1h)
| where ResultDescription has_any ("bind", "listen", "port", "address already in use", "EADDRINUSE", "0.0.0.0", "127.0.0.1")
| project TimeGenerated, ResultDescription
| order by TimeGenerated desc

Interpretation Notes

  • Normal: listener starts once on expected 0.0.0.0:<port> with no bind conflicts.
  • Abnormal: address already in use, repeated bind failures, or logs showing 127.0.0.1 bind only.
  • Reading tip: confirm that logged port matches WEBSITES_PORT and container configuration.

Limitations

  • Log message formats vary by runtime/server (Gunicorn, Node, Java, etc.).
  • Broad keyword matching can include benign listen information.
  • This query cannot validate actual socket state inside the running container.
