Outbound Client Certificates¶

Use this runbook when your App Service app must present its own client certificate to a downstream service for mutual TLS. The platform handles certificate upload and exposure to app code, but your application still must load the certificate and attach it to the outbound TLS client.

Prerequisites¶

• Private certificate exported as password-protected .pfx / PKCS#12
• Permission to upload certificates and update app settings
• Target service that requires client-certificate authentication
• Variables set:
  • $RG
  • $APP_NAME

When to Use¶

Use outbound client certificates when:

• A partner API requires certificate-based client authentication
• Internal APIs behind a gateway require mTLS from the caller
• The application must present a private certificate instead of bearer-token-based identity

Procedure¶

flowchart TD
    A[Private certificate PFX] --> B[az webapp config ssl upload]
    B --> C[Certificate thumbprint]
    C --> D[WEBSITE_LOAD_CERTIFICATES]
    D --> E[Windows store or Linux file path]
    E --> F[Application outbound TLS client]

1) Upload the private certificate¶

az webapp config ssl upload \
  --resource-group $RG \
  --name $APP_NAME \
  --certificate-file ./client-cert.pfx \
  --certificate-password "<certificate-password>" \
  --output json

Capture the thumbprint from the command output or inspect uploaded certificates:

az webapp config ssl list \
  --resource-group $RG \
  --output json

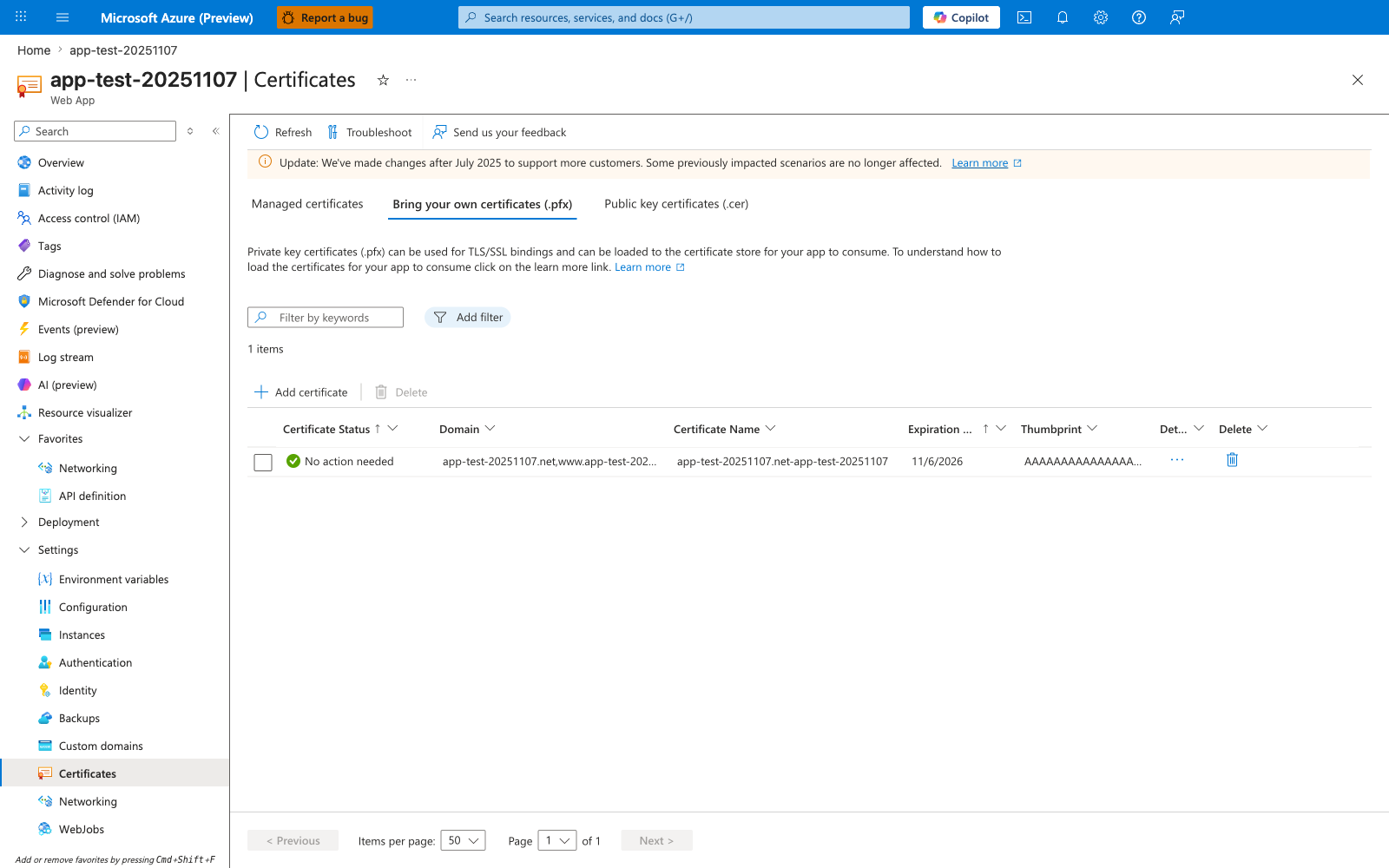

Portal view: Certificates blade (.pfx tab)¶

The Certificates blade with the Bring your own certificates (.pfx) tab active is where every certificate uploaded by az webapp config ssl upload appears. The row shown is a typical post-upload state: the Certificate Status of No action needed means the platform has validated the PFX, the Thumbprint column is the exact value to plug into WEBSITE_LOAD_CERTIFICATES, and Expiration: 11/6/2026 is the date that should drive a calendar reminder for the rotation procedure in step 5 below. The three tabs are not interchangeable for outbound mTLS — only .pfx certificates carry the private key the application needs to present the certificate to a downstream service, so always confirm you are on this tab before reading thumbprints. The Add certificate action is the Portal equivalent of az webapp config ssl upload and additionally surfaces alternative sources such as importing from Key Vault when the certificate is already stored centrally.

2) Make the certificate available to code¶

Expose one certificate by thumbprint:

az webapp config appsettings set \
  --resource-group $RG \
  --name $APP_NAME \
  --settings WEBSITE_LOAD_CERTIFICATES="<thumbprint>" \
  --output json

Expose all uploaded certificates:

az webapp config appsettings set \
  --resource-group $RG \
  --name $APP_NAME \
  --settings WEBSITE_LOAD_CERTIFICATES="*" \
  --output json

3) Know where the certificate appears at runtime¶

Runtime access differs by hosting OS:

Useful environment variables in containers:

• WEBSITE_PRIVATE_CERTS_PATH
• WEBSITE_PUBLIC_CERTS_PATH
• WEBSITE_INTERMEDIATE_CERTS_PATH
• WEBSITE_ROOT_CERTS_PATH

4) Restart after changing certificate visibility¶

When you change thumbprints or add certificates after initial configuration, restart the app so the new certificate exposure is consistent for application code.

az webapp restart \
  --resource-group $RG \
  --name $APP_NAME

5) Plan rotation deliberately¶

Recommended rotation shape:

1. Upload the renewed certificate.
2. Add the new thumbprint to WEBSITE_LOAD_CERTIFICATES or switch to the new thumbprint.
3. Restart the app.
4. Validate outbound mTLS calls.
5. Remove the retired certificate after successful cutover.

For configuration indirection, use Key Vault references where appropriate and remember that unpinned references can refresh to the latest version within 24 hours.

Verification¶

Check the app setting:

az webapp config appsettings list \
  --resource-group $RG \
  --name $APP_NAME \
  --query "[?name=='WEBSITE_LOAD_CERTIFICATES']" \
  --output json

Check uploaded certificates:

az webapp config ssl list \
  --resource-group $RG \
  --query "[?hostNames==null].{thumbprint:thumbprint,subjectName:subjectName,expirationDate:expirationDate}" \
  --output json

Application-level verification:

• Windows code-based app can find the certificate in CurrentUser\My
• Windows container app can resolve the certificate from its documented container path or store model
• Linux app can open the expected file under /var/ssl/private
• The remote service accepts the outbound request and logs the expected client certificate identity

Rollback / Troubleshooting¶

Common issues:

• Certificate not found in app code:
  • thumbprint mismatch in WEBSITE_LOAD_CERTIFICATES
  • app restart was skipped
  • wrong OS-specific lookup logic
• Upload succeeded but outbound calls still fail:
  • wrong certificate password at runtime for .p12
  • remote service does not trust the client certificate chain
  • app never attached the certificate to its HTTP or TLS client
• Rotation did not take effect:
  • app still references old thumbprint
  • certificate reference refresh window not yet elapsed

Rollback by restoring the previous thumbprint and restarting the app:

az webapp config appsettings set \
  --resource-group $RG \
  --name $APP_NAME \
  --settings WEBSITE_LOAD_CERTIFICATES="<previous-thumbprint>" \
  --output json

az webapp restart \
  --resource-group $RG \
  --name $APP_NAME
