Networking Operations¶

Operate Azure App Service networking by treating inbound and outbound paths separately: use access restrictions or private endpoints for inbound reachability, and use virtual network integration for outbound access to private dependencies.

Prerequisites¶

• Existing Web App and App Service Plan in a supported dedicated tier
• Existing virtual network with separate subnets for:
  • private endpoint
  • VNet integration
  • client test host (recommended)
• RBAC permissions for App Service, Virtual Network, Private Endpoint, and Private DNS resources
• Variables set:
  • RG
  • APP_NAME
  • VNET_NAME
  • INTEGRATION_SUBNET_NAME
  • PRIVATE_ENDPOINT_SUBNET_NAME
  • CLIENT_SUBNET_NAME
  • LOCATION

When to Use¶

Use this guide when you need one or more of these patterns:

1. Restrict public inbound traffic to specific source ranges.
2. Expose the app privately over Azure Private Link.
3. Let the app reach private resources through a delegated integration subnet.
4. Validate DNS, routing, and reachability after networking changes.

Procedure¶

flowchart TD
    Client[Client] --> Inbound{Inbound path}
    Inbound --> Access[Access restrictions]
    Inbound --> PrivateEndpoint[Private endpoint]
    Access --> App[App Service app]
    PrivateEndpoint --> App
    App --> Outbound{Outbound path}
    Outbound --> VNetIntegration[VNet integration]
    VNetIntegration --> PrivateDeps[Private dependencies]
    VNetIntegration --> NatOrFirewall[NAT gateway or firewall optional]

Combined Architecture (Private Inbound + Private Outbound)¶

flowchart TD
    InternalClient[Client in connected network] --> PublicDns[Public DNS for app hostname]
    PublicDns --> PrivateDns[Private DNS zone for privatelink.azurewebsites.net]
    PrivateDns --> PrivateEndpoint[Private endpoint in dedicated subnet]
    PrivateEndpoint --> App[App Service app]
    App --> VNetIntegration[Delegated integration subnet]
    VNetIntegration --> PrivateResource[Private dependency]
    VNetIntegration --> OptionalNat[Optional NAT gateway or firewall]

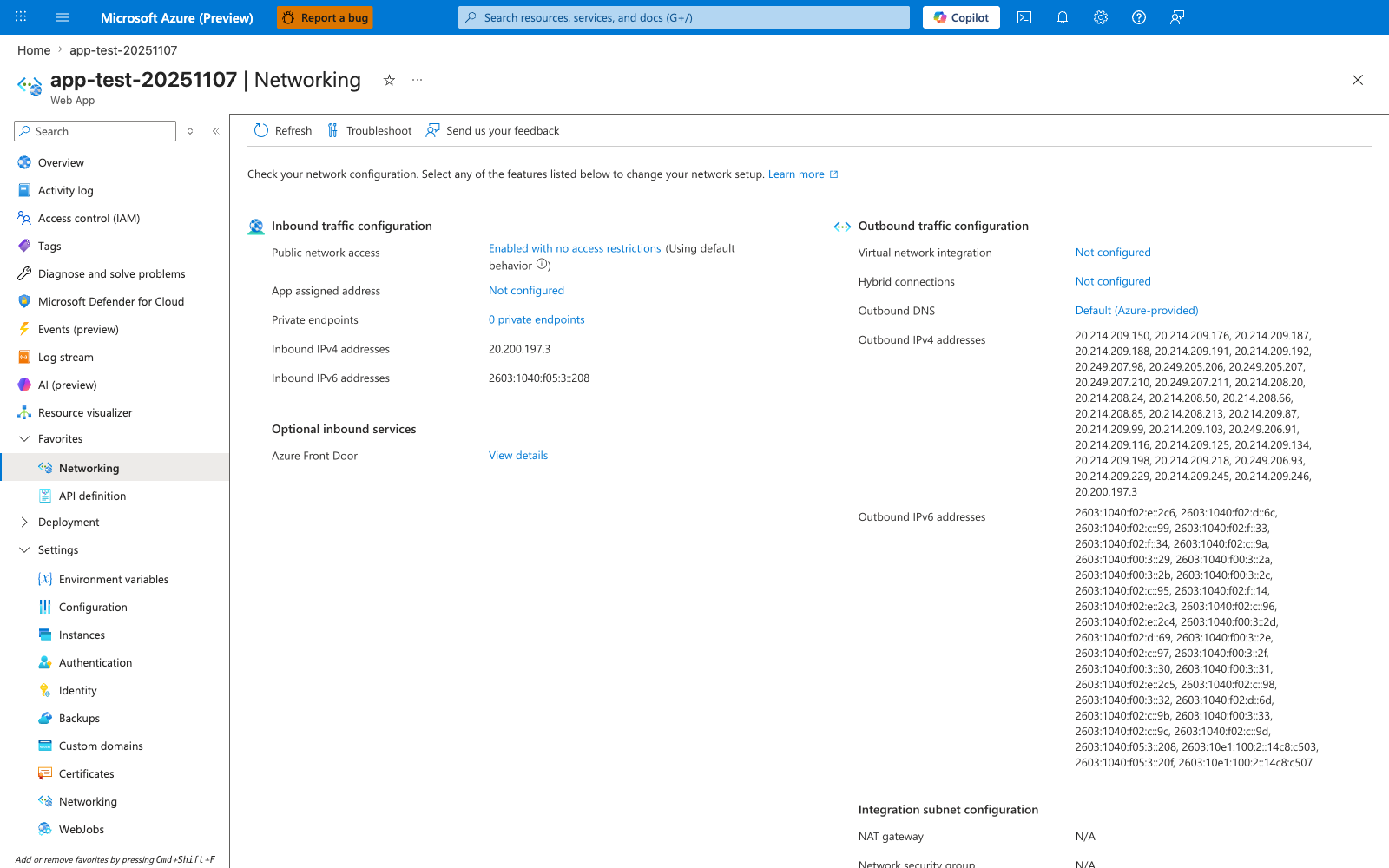

Portal view: Networking blade¶

The Networking blade is the single Portal surface that ties together every operation in this guide. Reading top to bottom against the inbound/outbound flowchart above: Public network access: Enabled with no access restrictions proves the app is reachable from the entire internet and is exactly the gap the access-restriction rules in step 1 below close; Private endpoints: 0 is the surface step 3 changes; and Virtual network integration: Not configured is what step 2 connects. The Outbound DNS: Default (Azure-provided) row controls the resolver the App Service worker uses for its own outbound calls — separately, step 4 below configures the privatelink.azurewebsites.net private DNS zone so clients in your network resolve app-name.azurewebsites.net to the private endpoint IP instead of the public hostname. The long Outbound IPv4 addresses list is the pool of platform-assigned egress IPs the app can use before VNet integration takes over — these are documented but not guaranteed stable, which is why step 5 covers NAT gateway egress for deterministic outbound paths. Return to this blade after each step to confirm the corresponding row no longer reads "Not configured" or "default behavior".

1. Configure Inbound Access Restrictions¶

Allow approved public sources first, then add a deny fallback.

az webapp config access-restriction add \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --rule-name "AllowCorp" \
  --action Allow \
  --ip-address "203.0.113.0/24" \
  --priority 100 \
  --output json

az webapp config access-restriction add \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --rule-name "DenyAll" \
  --action Deny \
  --ip-address "0.0.0.0/0" \
  --priority 2147483647 \
  --output json

az webapp config access-restriction show \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --query "ipSecurityRestrictions[].{name:name,action:action,ip:ipAddress,priority:priority}" \
  --output table

2. Enable VNet Integration for Outbound Traffic¶

Use a dedicated delegated subnet for outbound connectivity. Private endpoint and VNet integration must use different subnets.

az webapp vnet-integration add \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --vnet "$VNET_NAME" \
  --subnet "$INTEGRATION_SUBNET_NAME" \
  --output json

az webapp config appsettings set \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --settings "WEBSITE_VNET_ROUTE_ALL=1" \
  --output json

az webapp vnet-integration list \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --output table

3. Create a Private Endpoint for Inbound Private Access¶

The private endpoint handles inbound traffic only. It doesn't replace VNet integration for outbound traffic.

APP_ID="$(az webapp show \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --query id \
  --output tsv)"

az network private-endpoint create \
  --resource-group "$RG" \
  --name "pe-$APP_NAME" \
  --vnet-name "$VNET_NAME" \
  --subnet "$PRIVATE_ENDPOINT_SUBNET_NAME" \
  --private-connection-resource-id "$APP_ID" \
  --group-id "sites" \
  --connection-name "pec-$APP_NAME" \
  --output json

az network private-endpoint show \
  --resource-group "$RG" \
  --name "pe-$APP_NAME" \
  --query "{state:provisioningState,connections:privateLinkServiceConnections[].privateLinkServiceConnectionState.status}" \
  --output json

4. Configure Private DNS Resolution¶

For App Service private endpoints, clients should resolve app-name.azurewebsites.net through the privatelink.azurewebsites.net private DNS zone. Use a private DNS zone group so the required records are created automatically.

az network private-dns zone create \
  --resource-group "$RG" \
  --name "privatelink.azurewebsites.net" \
  --output json

az network private-dns link vnet create \
  --resource-group "$RG" \
  --zone-name "privatelink.azurewebsites.net" \
  --name "link-$VNET_NAME" \
  --virtual-network "$VNET_NAME" \
  --registration-enabled false \
  --output json

az network private-endpoint dns-zone-group create \
  --resource-group "$RG" \
  --endpoint-name "pe-$APP_NAME" \
  --name "default" \
  --private-dns-zone "privatelink.azurewebsites.net" \
  --zone-name "privatelink.azurewebsites.net" \
  --output json

5. Review Outbound Egress Expectations¶

App Service outbound IP lists are potential addresses. When you use route-all with a NAT gateway or firewall, validate the actual egress path from the integrated subnet.

az webapp show \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --query "{outbound:outboundIpAddresses,possible:possibleOutboundIpAddresses}" \
  --output json

az network vnet subnet show \
  --resource-group "$RG" \
  --vnet-name "$VNET_NAME" \
  --name "$INTEGRATION_SUBNET_NAME" \
  --query "natGateway.id" \
  --output tsv

Verification¶

Verify Public Access Restriction Behavior¶

Run from an allowed and then a blocked public source.

curl --silent --output /dev/null --write-out "%{http_code}" \
  "https://$APP_NAME.azurewebsites.net/health"

Expected results:

• allowed public source: 200
• blocked public source: 403

Verify Private Endpoint Reachability from a Connected Network¶

You need a client inside the linked VNet or a connected network. A VM is the most common test client. Azure Bastion is only an access method to that VM; it doesn't replace the VM or other in-network client.

Supported client patterns:

• VM in the VNet, accessed through Azure Bastion
• VM in the VNet, accessed through VPN or ExpressRoute
• Existing workstation in a connected network with DNS forwarding to Azure private DNS

Option A: Create a Temporary Test VM and Access It with Bastion¶

Use a client subnet, not the private endpoint subnet, for the VM. If you need to create AzureBastionSubnet, choose an unused /26 or larger prefix from the existing VNet address space.

az network vnet subnet create \
  --resource-group "$RG" \
  --vnet-name "$VNET_NAME" \
  --name "AzureBastionSubnet" \
  --address-prefixes "<unused-vnet-prefix-for-bastion-subnet>"

az network public-ip create \
  --resource-group "$RG" \
  --name "pip-bastion" \
  --sku "Standard" \
  --location "$LOCATION"

az network bastion create \
  --resource-group "$RG" \
  --name "bastion-$APP_NAME" \
  --vnet-name "$VNET_NAME" \
  --public-ip-address "pip-bastion" \
  --location "$LOCATION" \
  --sku "Standard"

az vm create \
  --resource-group "$RG" \
  --name "vm-jumpbox" \
  --image "Ubuntu2404" \
  --size "Standard_B1s" \
  --vnet-name "$VNET_NAME" \
  --subnet "$CLIENT_SUBNET_NAME" \
  --admin-username "azureuser" \
  --generate-ssh-keys \
  --public-ip-address ""

Connect to the VM:

az network bastion ssh \
  --resource-group "$RG" \
  --name "bastion-$APP_NAME" \
  --target-resource-id "$(az vm show --resource-group "$RG" --name "vm-jumpbox" --query id --output tsv)" \
  --auth-type "ssh-key" \
  --username "azureuser" \
  --ssh-key "$HOME/.ssh/id_rsa"

Once connected to the VM, validate DNS and HTTP reachability:

nslookup "$APP_NAME.azurewebsites.net"
curl --silent --output /dev/null --write-out "%{http_code}" \
  "https://$APP_NAME.azurewebsites.net/health"

Expected results:

• DNS answer includes the privatelink.azurewebsites.net path.
• HTTP response is 200 from the in-network client.

Option B: Use an Existing Connected Client Instead of Creating a VM¶

If you already have a client in the linked VNet, a peered VNet, or an on-premises network connected through VPN or ExpressRoute, run the same nslookup and curl checks there. This is often preferable to creating temporary infrastructure.

az vm delete --resource-group "$RG" --name "vm-jumpbox" --yes
az network bastion delete --resource-group "$RG" --name "bastion-$APP_NAME"
az network public-ip delete --resource-group "$RG" --name "pip-bastion"

Verify Outbound Private Dependency Reachability¶

From the Kudu or SSH console of the app, validate DNS and port reachability to the private dependency.

nameresolver "your-private-resource.contoso.local"
tcpping "your-private-resource.contoso.local" 443

Network Debugging Checklist¶

flowchart TD
    Start[Connectivity issue] --> DNS[1. Validate DNS]
    DNS -->|Public path or NXDOMAIN| DNSFix[Fix private DNS zone, records, or VNet link]
    DNS -->|Private path resolves| TCP[2. Validate TCP reachability]
    TCP -->|Timeout| RouteFix[Check NSG, UDR, firewall, peering, or VPN path]
    TCP -->|Port reachable| HTTP[3. Validate application response]
    HTTP -->|403 or 5xx| AppFix[Check app auth, access policy, or app health]
    HTTP -->|200| Done[Connection verified]

Layered checks:

1. DNS resolution path
2. TCP reachability
3. Application response

Common Failures and Fixes¶

Rollback / Troubleshooting¶

To remove private inbound access:

az network private-endpoint delete \
  --resource-group "$RG" \
  --name "pe-$APP_NAME"

To remove outbound VNet integration:

az webapp vnet-integration remove \
  --resource-group "$RG" \
  --name "$APP_NAME" \
  --vnet "$VNET_NAME"

Advanced Topics¶

Zero Public Ingress Pattern¶

Use this combination for private-only access:

• Private endpoint for inbound traffic
• Public network access disabled after validation
• Private DNS for app and SCM hostnames
• VNet integration for outbound private dependencies

Hub-and-Spoke Governance¶

For larger estates:

• centralize DNS forwarding and private DNS ownership
• document which team owns NSGs, UDRs, and firewall policy
• standardize subnet sizing for integration and private endpoint patterns

Change Management¶

• validate DNS before changing traffic policy
• stage NSG and route updates separately from app changes
• keep a repeatable in-network test path for post-change verification

Language-Specific Details¶

For language-specific operational guidance, see:

• Node.js Guide
• Python Guide
• Java Guide
• .NET Guide

See Also¶

• Operations Index
• Security
• Health and Recovery
• App Service networking features (Microsoft Learn)
• Use private endpoints for apps (Microsoft Learn)
• Integrate your app with an Azure virtual network (Microsoft Learn)
• Configure Bastion for native client connections (Microsoft Learn)
• About Azure Bastion configuration settings (Microsoft Learn)

Sources¶

• App Service networking features (Microsoft Learn)
• Use private endpoints for apps (Microsoft Learn)
• Integrate your app with an Azure virtual network (Microsoft Learn)
